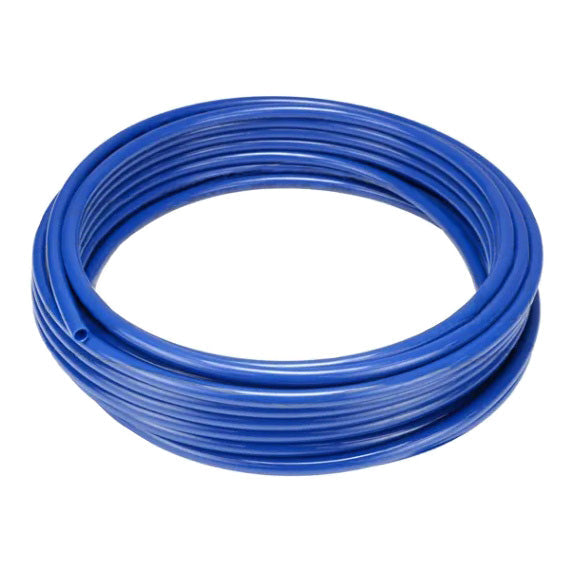

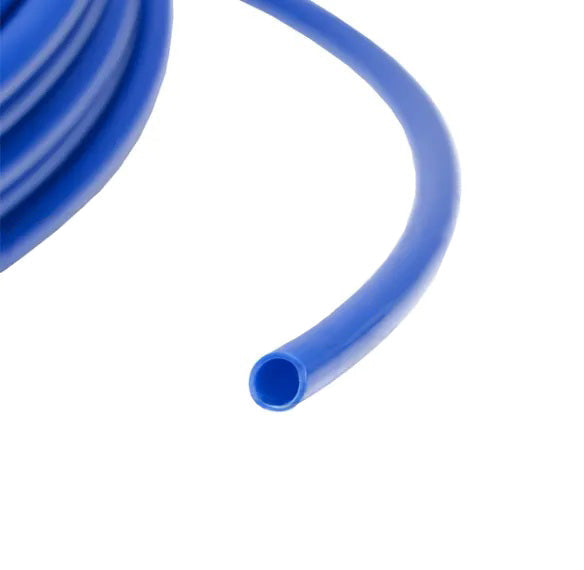

NY02093B-50 by Dixon Valve | Nylon Tubing | 1/8" OD | 0.093" ID | 0.016" Wall Thickness | Blue | 50ft Length

Save $16.12

$48.60

$48.60 - $48.60

$48.60

$32.48

$32.48 - $32.48

$32.48

Dixon Valve
Nylon Tubing | Blue

Ideal for many industrial applications.

Package Quantity: 50 FT

Specifications for Variant SKU: NY02093B-50 Dixon
Hose Color(s):	Blue
Internal Diameter:	0.093in
Outer Diameter:	0.125in
Tubing Construction:	Nylon
Cover Construction:	Nylon

Plastic Fittings and Tubing

Dixon Valve | Nylon Tubing

1

What are the key specifications?

Tube

Nylon

Cover

Nylon

Reinforcement

None

Temperature Range

-60°F to 200°F (-51°C to 93°C)

Color

Blue

2

What are the main product features?

Chemical, humidity, and abrasion resistant.
Semi rigid.

3

Which sizes or configurations are available?

Part Number	OD	ID	Wall Thickness	Working Pressure PSI at 68°F (20°C)	Length
NY02093B-50	1/8"	0.093"	0.016"	270 PSI	50ft
NY25106B-50	5/32"	0.106"	0.025"	350 PSI	50ft
NY04170B-50	1/4"	0.170"	0.040"	330 PSI	50ft
NY05232B-50	5/16"	0.233"	0.040"	240 PSI	50ft
NY06275B-50	3/8"	0.275"	0.050"	250 PSI	50ft
NY08375B-50	1/2"	0.375"	0.062"	240 PSI	50ft

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
