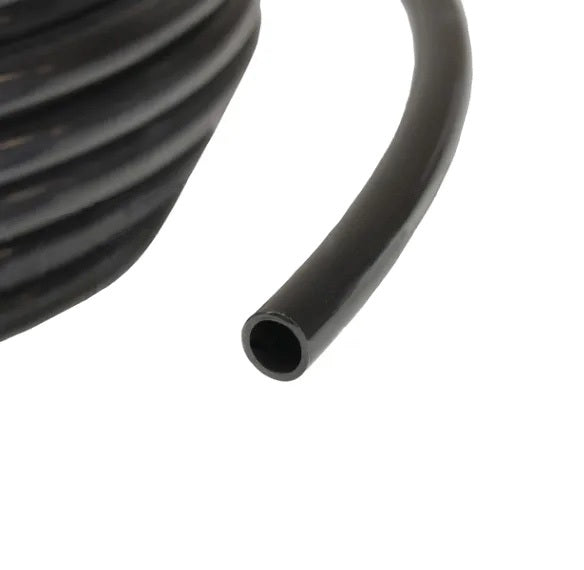

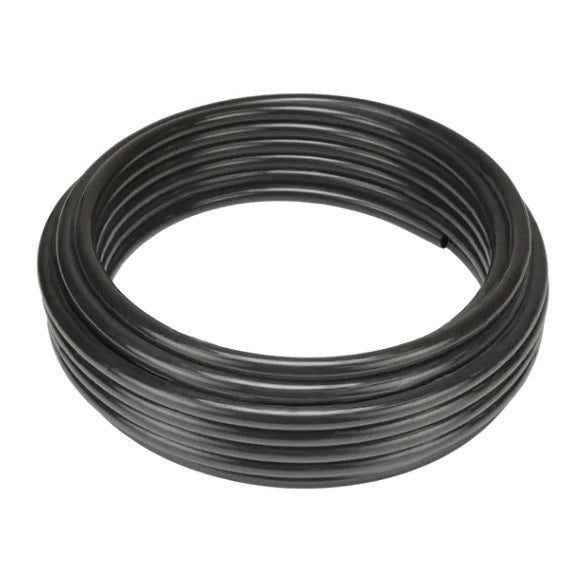

NY02093K-100 by Dixon Valve | Nylon Tubing | 1/8" OD | 0.093" ID | 0.016" Wall Thickness | Black | 100ft Length

Save $19.78

$58.03

$58.03 - $58.03

$58.03

$38.25

$38.25 - $38.25

$38.25

Dixon Valve
Nylon Tubing | Black

Ideal for many industrial applications.

Package Quantity: 100 FT

Specifications for Variant SKU: NY02093K-100 Dixon
Hose Color(s):	Black
Internal Diameter:	0.093in
Outer Diameter:	0.125in
Tubing Construction:	Nylon
Cover Construction:	Nylon

Plastic Fittings and Tubing

Dixon Valve | Nylon Tubing

1

What are the key specifications?

Tube

Nylon

Cover

Nylon

Reinforcement

None

Temperature Range

-60°F to 200°F (-51°C to 93°C)

Color

Black

2

What are the main product features?

Chemical, humidity, and abrasion resistant.
Semi rigid.

3

Which sizes or configurations are available?

Part Number	OD	ID	Wall Thickness	Working Pressure PSI at 68°F (20°C)	Length
NY02093K-100	1/8"	0.093"	0.016"	270 PSI	100ft
NY25106K-100	5/32"	0.106"	0.025"	350 PSI	100ft
NY03138K-100	3/16"	0.138"	0.025"	260 PSI	100ft
NY04170K-100	1/4"	0.170"	0.040"	330 PSI	100ft
NY05232K-100	5/16"	0.233"	0.040"	240 PSI	100ft
NY06275K-100	3/8"	0.275"	0.050"	250 PSI	100ft
NY08375K-100	1/2"	0.375"	0.062"	240 PSI	100ft

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
