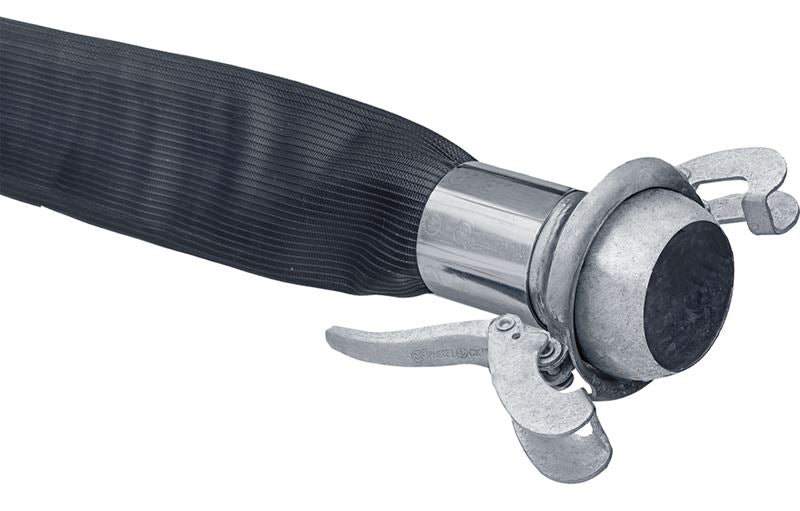

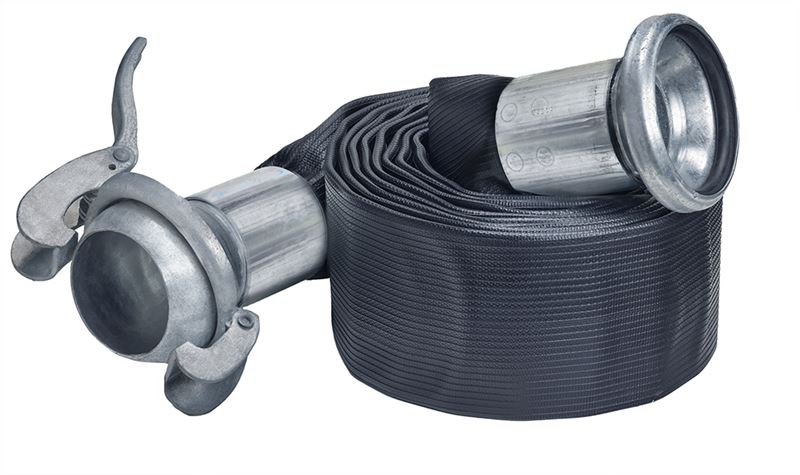

OF10ASL800X50 OROFLEX® 10 by Kuriyama | OF10ASL Series | Rubber Discharge Layflat Hose Assembly | Male x Female Sphere Lock™ Type B Ball & Socket Couplings | 8" Size | Black | 50ft Length

Save $608.93

$1,778.93

$1,778.93 - $1,778.93

$1,778.93

$1,170.00

$1,170.00 - $1,170.00

$1,170.00

Kuriyama
OROFLEX® 10 | OF10ASL Series | Rubber Discharge Layflat Hose Assembly | Male x Female Sphere Lock Type B Ball & Socket Couplings

Designed for agriculture, irrigation, pump discharge, cable covering, and a many other applications.

Resistant to snaking, kinking, stretching and twisting.

Made in Europe.

Specifications for Variant SKU: OF10ASL800X50 Kuriyama
Brand:	OROFLEX 10
Series:	OF10ASL Series
Hose Color(s):	Black
Internal Diameter:	8.051in
Tubing Construction:	Nitrile/PVC Blend
Cover Construction:	Nitrile/PVC Blend

SPECIFICATIONS

Other Features:
Applications:	Agriculture Cable covering Dewatering Drainage Floatation booms Industrial washdown Irrigation Limited oil and chemical applications Pump discharge Watering
Construction:	Black PVC/Nitrile hose using an extruded through-the-weave process with circular woven high tenacity polyester reinforcement.
Service Temperature Range:	-22°F (-30°C) to +176°F (+80°C)
Factory Tested - 100% pressure tested with factory certificate. Complete Assembly - Includes crimped on Sphere Lock™ male and female type B ball and socket couplings. Proprietary PVC/Nitrile Material - Specially developed PVC/Nitrile material provides superior abrasion, UV, chemical and oil resistance compared to PVC hoses. Unique Woven Construction - Specially designed weave pattern provides resistance to snaking, kinking, stretching and twisting. Made in Europe.

Part Number 50ft	Size		Wall Thickness	Working Pressure (PSI)	Burst Pressure (PSI)	Tensile Strength
Part Number 50ft	(in)	(mm)	(in)	at 68°F	at 68°F	(lbs)
OF10ASL400X50	4"	101.6mm	0.094"	175 PSI	435 PSI	17,400 lbs
OF10ASL600X50	6"	152.4mm	0.118"	175 PSI	435 PSI	36,000 lbs
OF10ASL800X50	8"	203.2mm	0.134"	145 PSI	360 PSI	51,950 lbs
