OF20B-600X100 OROFLEX® 20 by Kuriyama | OF20B Series | Heavy Duty Rubber Discharge Layflat Hose | PVC/Nitrile | 6" Size | 6.063" Hose ID | Black | 100ft Length
OF20B-600X100 OROFLEX® 20 by Kuriyama | OF20B Series | Heavy Duty Rubber Discharge Layflat Hose | PVC/Nitrile | 6" Size | 6.063" Hose ID | Black | 100ft Length
OF20B-600X100 OROFLEX® 20 by Kuriyama | OF20B Series | Heavy Duty Rubber Discharge Layflat Hose | PVC/Nitrile | 6" Size | 6.063" Hose ID | Black | 100ft Length

OF20B-600X100 OROFLEX® 20 by Kuriyama | OF20B Series | Heavy Duty Rubber Discharge Layflat Hose | PVC/Nitrile | 6" Size | 6.063" Hose ID | Black | 100ft Length

Save $426.20 Save $426.20
$1,626.20
$1,626.20 - $1,626.20
$1,626.20
$1,200.00
$1,200.00 - $1,200.00
$1,200.00

Kuriyama

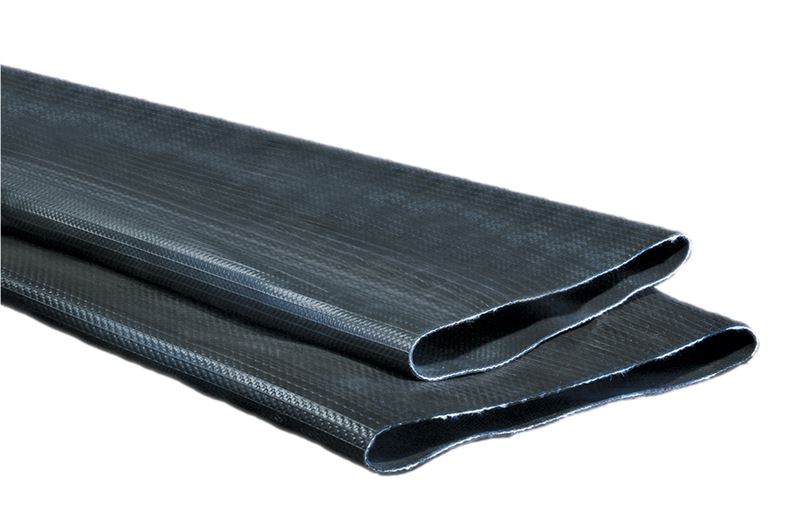

OROFLEX® 20 | OF20B Series | Heavy Duty Rubber Discharge Layflat Hose

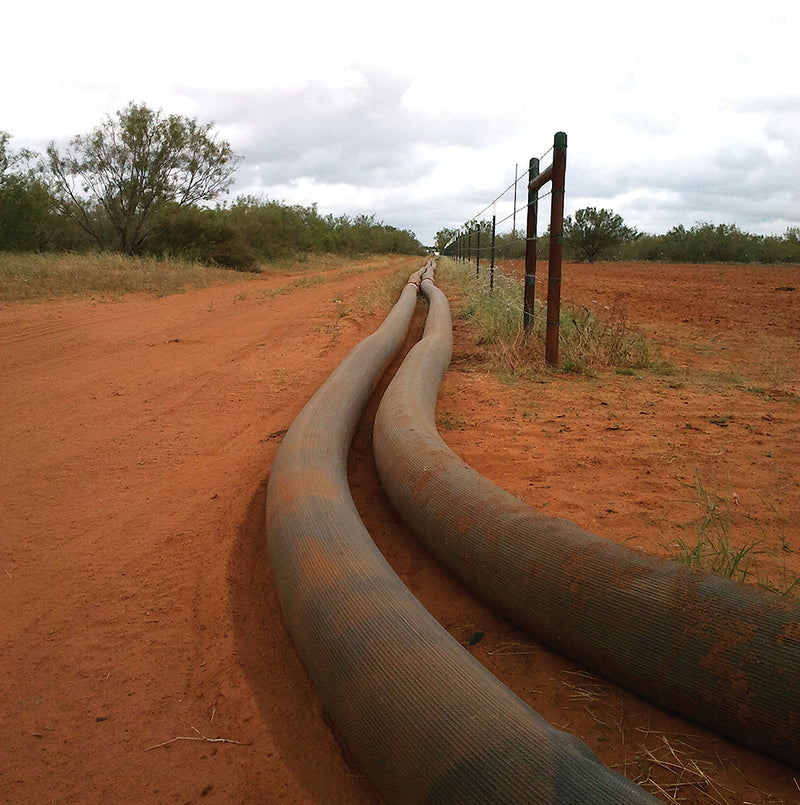

Engineered for tough agricultural and industrial use, this hose handles contaminated liquids, fertilizers, oils, and hydrocarbons, as well as dewatering, irrigation, mining, and the transfer of frack solutions, sludge, slurry, and liquid manure.

Resistant to snaking, kinking, stretching and twisting.

Made in Europe.

Package Quantity: 100 Foot

Specifications for Variant SKU: OF20B-600X100 Kuriyama | 100 |
Brand: OROFLEX 20
Series: OF20B Series
Hose Color(s): Black
Internal Diameter: 6.063in
Tubing Construction: Nitrile/PVC Blend
Cover Construction: Nitrile/PVC Blend

SPECIFICATIONS

Applications: Agriculture
Contaminated liquids, fertilizers, oils, hydrocarbons
Dewatering
Frack solution and fresh water transfer
Irrigation
Limited chemical applications
Liquid manure, sludge and slurry transfer
Mining
Watering
Construction: Black PVC/Nitrile hose using an extruded through-the-weave process with circular woven high tenacity polyester reinforcement.
Service Temperature Range: -20°F (-29°C) to +176°F (+80°C)
Other Features:
  • Proprietary PVC/Nitrile Material - Specially developed PVC/Nitrile material provides superior abrasion, UV, chemical and oil resistance compared to PVC hoses.
  • Unique Woven Construction - Specially designed weave pattern provides resistance to snaking, kinking, stretching and twisting.
  • Longer Lengths - Manufactured in special 660 foot lengths to reduce possible leaking points.
  • Compact Design - Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses.
  • Made in Europe.
Part Number
50ft		 Part Number
100ft		 Part Number
660ft		 Size Hose ID Wall
Thickness		 Working
Pressure
(PSI)		 Burst
Pressure		 Tensile
Strength
(in) (mm) (in) (mm) (in) at 68°F at 68°F (lbs)
- OF20B-600X100 OF20B-600X660 6" 152.4mm 6.063" 154.0mm 0.160" 290 PSI 725 PSI 51,600 lbs
- - OF20B-700X660 7" 177.8mm 7.126" 181.0mm 0.160" 230 PSI 580 PSI 66,150 lbs
- - OF20B-800X660 8" 203.2mm 8.091" 205.5mm 0.150" 200 PSI 500 PSI 77,150 lbs
OF20B-1000X050 OF20B-1000X100 OF20B-1000X660 10" 254.0mm 10.059" 255.5mm 0.150" 200 PSI 500 PSI 110,250 lbs
OF20B-1200X050 OF20B-1200X100 OF20B-1200X660 12" 304.8mm 12.087" 307.0mm 0.160" 155 PSI 375 PSI 101,400 lbs
