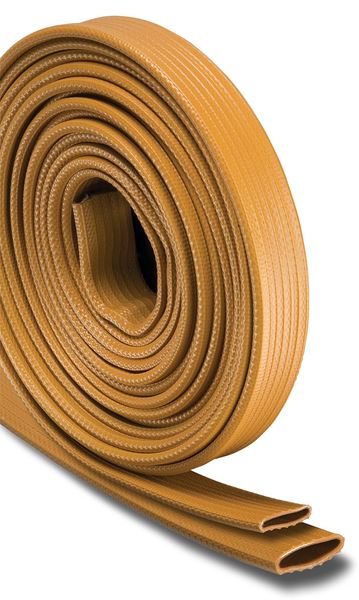

OF20Y-250X200 OROFLEX® 20 by Kuriyama | OF20Y Series | Heavy Duty Air & Discharge Layflat Hose | PVC/Nitrile | 2-1/2" Size | 2.590" Hose ID | Yellow | 200ft Length

Save $527.30

$1,259.30

$1,259.30 - $1,259.30

$1,259.30

$732.00

$732.00 - $732.00

$732.00

Kuriyama
OROFLEX® 20 | OF20Y Series | Heavy Duty Air & Discharge Layflat Hose

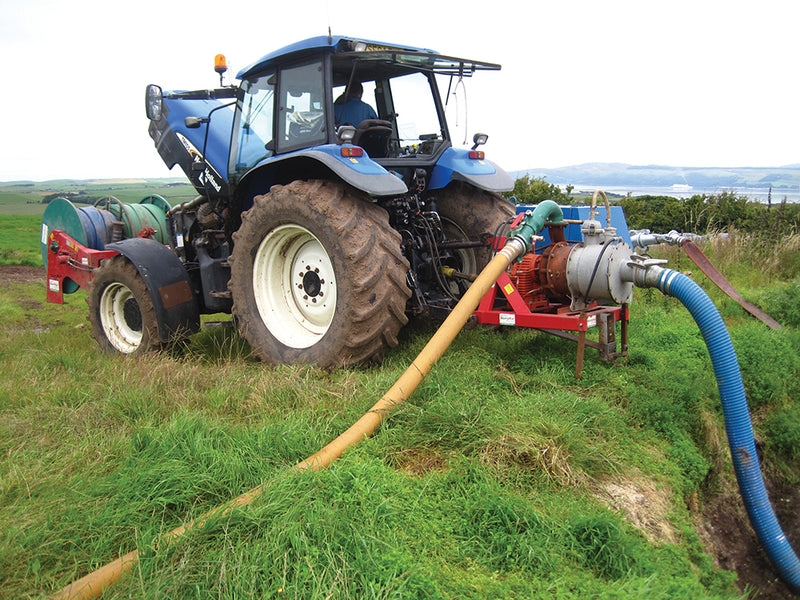

For agriculture, irrigation, dewatering, and industrial washdown, as well as air compressors, bulk powder discharge, and limited oil or chemical applications.

Resistant to snaking, kinking, stretching and twisting.

Made in Europe.

Package Quantity: 200 Foot

Specifications for Variant SKU: OF20Y-250X200 Kuriyama \| 200 \|
Brand:	OROFLEX 20
Series:	OF20Y Series
Hose Color(s):	Yellow
Internal Diameter:	2.590in
Tubing Construction:	Nitrile/PVC Blend
Cover Construction:	Nitrile/PVC Blend

SPECIFICATIONS

Other Features:
Applications:	Agriculture Air compressors Bulk powder discharge (excluding cement) Cable covering Dewatering Drainage Flotation booms High pressure liquid pumping Industrial washdown Irrigation Limited oil and chemical applications Watering
Construction:	Yellow PVC/Nitrile hose using an extruded through-the-weave process with circular woven high tenacity polyester reinforcement.
Service Temperature Range:	-22°F (-30°C) to +176°F (+80°C)
Proprietary PVC/Nitrile Material - Specially developed PVC/Nitrile material provides superior abrasion, UV, chemical and oil resistance compared to PVC hoses. Unique Woven Construction - Specially designed weave pattern provides resistance to snaking, kinking, stretching and twisting. Compact Design - Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses. Made in Europe.

Part Number 50ft	Part Number 100ft	Part Number 200ft	Size		Hose ID		Wall Thickness	Working Pressure (PSI)		Burst Pressure	Tensile Strength
Part Number 50ft	Part Number 100ft	Part Number 200ft	(in)	(mm)	(in)	(mm)	(in)	Liquid	Air	PSI	(lbs)
OF20Y-075X050	-	OF20Y-075X200	3/4"	19.1mm	0.866"	22.0mm	0.080"	480 PSI	360 PSI	1450 lbs	3,300 lbs
OF20Y-100X050	-	OF20Y-100X200	1"	25.4mm	1.075"	27.3mm	0.080"	550 PSI	415 PSI	1660 lbs	4,150 lbs
-	-	OF20Y-150X200	1-1/2"	38.1mm	1.555"	39.5mm	0.110"	305 PSI	225 PSI	910 lbs	6,600 lbs
-	-	OF20Y-200X200	2"	50.8mm	2.106"	53.5mm	0.120"	305 PSI	225 PSI	910 lbs	8,250 lbs
-	-	OF20Y-250X200	2-1/2"	63.5mm	2.590"	65.8mm	0.120"	300 PSI	185 PSI	750 lbs	13,200 lbs
-	OF20Y-300X100	OF20Y-300X200	3"	76.2mm	3.031"	77.0mm	0.120"	260 PSI	160 PSI	650 lbs	18,750 lbs
-	-	OF20Y-400X200	4"	101.6mm	4.035"	102.5mm	0.120"	300 PSI	-	750 lbs	28,650 lbs
