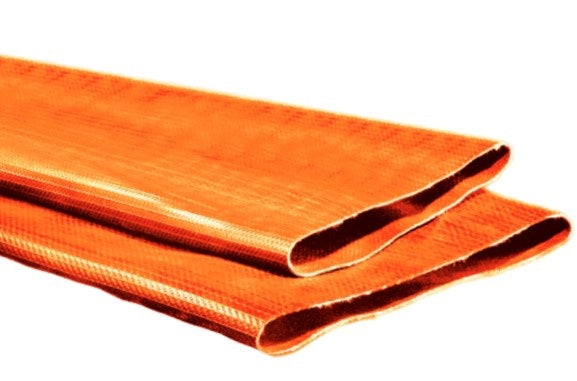

OFDG-500X660 OROFLEX® DRAG by Kuriyama | OFDG Series | Manure Drag Layflat Hose | Polyurethane | 5" Size | 5.020" Hose ID | Orange | 660ft Length

OFDG-500X660 OROFLEX® DRAG by Kuriyama | OFDG Series | Manure Drag Layflat Hose | Polyurethane | 5" Size | 5.020" Hose ID | Orange | 660ft Length

Save $939.19 Save $939.19
$8,859.19
$8,859.19 - $8,859.19
$8,859.19
$7,920.00
$7,920.00 - $7,920.00
$7,920.00

Kuriyama
OROFLEX® DRAG | OFDG Series | Manure Drag Layflat Hose

Designed for demanding agricultural use.

Ideal for slurry and manure injection or spreading, as well as irrigation feed and traveler irrigator applications.

Resistant to snaking, kinking, stretching and twisting.

Made in Europe.

Package Quantity: 660 Foot

Specifications for Variant SKU: OFDG-500X660 Kuriyama | 660 |
Brand: OROFLEX DRAG
Series: OFDG Series
Hose Color(s): Orange
Internal Diameter: 5.020in
Tubing Construction: TPU
Cover Construction: TPU

SPECIFICATIONS

Applications: Drag and transport lines for slurry/manure injection and spreading.
Irrigation feeding line.
Traveler irrigators.
Construction: Orange polyurethane (TPU) hose using an extruded through-the-weave process with circular woven high tenacity polyester reinforcement.
Service Temperature Range: -58°F (-50°C) to +150°F (+65°C);
Intermittent service to +175°F (+79°C)
Other Features:
  • Premium Polyurethane (TPU) Material - Exhibits exceptional resistance to abrasion, allowing for use in applications where severe abrasion is a factor and providing longer service life versus rubber or PVC hoses. Also, exhibits exceptional resistance to oils and petroleum based products.
  • Unique Woven Construction - Specially designed weave pattern provides resistance to snaking, kinking, stretching and twisting.
  • Longer Lengths - Manufactured in special 660 foot lengths to reduce possible leaking points.
  • Smooth TPU Tube - Provides low friction loss.
  • Compact Design - Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses.
  • Made in Europe.
Part Number
660ft		 Size Hose ID Wall
Thickness		 Working
Pressure
(PSI)		 Burst
Pressure		 Tensile
Strength
(in) (mm) (in) (mm) (in) at 68°F at 68°F (lbs)
OFDG-500X660 5" 127.0mm 5.020" 127.5mm 0.150" 200 PSI 505 PSI 39,700 lbs
OFDG-550X660 5-1/2" 139.7mm 5.571" 141.5mm 0.150" 175 PSI 435 PSI 44,100
OFDG-600X660 6" 152.4mm 6.003" 152.5mm 0.150" 175 PSI 435 PSI 55,100
