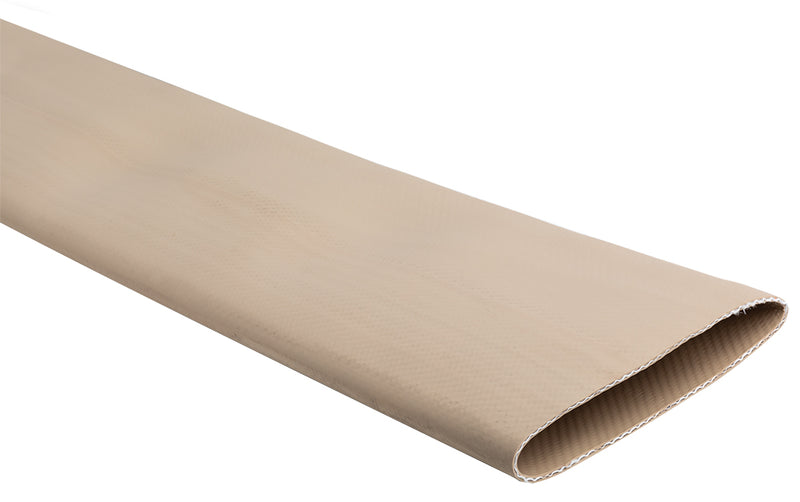

OFOIL-200X660 OROFLEX® OIL by Kuriyama | OFOIL Series | Oil Transfer Layflat Hose | Polyurethane | 2" Size | 2.059" Hose ID | Tan | 660ft Length

Save $907.65

$3,956.85

$3,956.85 - $3,956.85

$3,956.85

$3,049.20

$3,049.20 - $3,049.20

$3,049.20

Kuriyama
OROFLEX® OIL | OFOIL Series | Oil Transfer Layflat Hose

Designed for versatility in marine and industrial environments.

Handles brackish or seawater, fuel, oil, and general fluid transfer applications.

Resistant to snaking, kinking, stretching and twisting.

Made in Europe.

Package Quantity: 660 Foot

Specifications for Variant SKU: OFOIL-200X660 Kuriyama \| 660 \|
Brand:	OROFLEX OIL
Series:	OFOIL Series
Hose Color(s):	Tan
Internal Diameter:	2.059in
Tubing Construction:	TPU
Cover Construction:	TPU
Applicable Specs & Approvals:	MIL-PRF-370

Other Features:
Applications:	Brackish and seawater. Fluid transfer. Fuels and oils transport.
Construction:	Polyurethane (TPU) hose using an extruded through-the-weave process with circular woven high tenacity polyester reinforcement. Four electrical wires protected with a braided sheet of polyester to help prevent static build up.
Service Temperature Range:	-58°F (-50°C) to +150°F (+65°C); Intermittent service to +175°F (+79°C)
Premium Polyurethane (TPU) Material - Exhibits exceptional resistance to abrasion, allowing for use in applications where severe abrasion is a factor and providing longer service life versus rubber or PVC hoses. Also, exhibits exceptional resistance to oils and petroleum based products. Grounding Wires - Hose contains four wires to help prevent the buildup of static electricity for added safety. Unique Woven Construction - Specially designed weave pattern provides resistance to snaking, kinking, stretching and twisting. Longer Lengths - Manufactured in special 660 foot lengths to reduce possible leaking points. Smooth TPU Tube - Provides low friction loss. Compact Design - Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses. MIL-Spec - In compliance with MIL-PRF-370. Made in Europe.

Part Number 200ft	Part Number 660ft	Size		Hose ID		Wall Thickness	Working Pressure (PSI)	Burst Pressure
Part Number 200ft	Part Number 660ft	(in)	(mm)	(in)	(mm)	(in)	at 68°F	at 68°F
OFOIL-200X200	OFOIL-200X660	2"	50.8mm	2.059"	52.3mm	0.087"	150 PSI	600 PSI
OFOIL-300X200	OFOIL-300X660	3"	76.2mm	3.059"	77.7mm	0.093"	150 PSI	600 PSI
OFOIL-400X200	OFOIL-400X660	4"	101.6mm	4.059"	103.1mm	0.106"	150 PSI	600 PSI
OFOIL-600X200	OFOIL-600X660	6"	152.4mm	6.059"	153.9mm	0.138"	150 PSI	600 PSI
