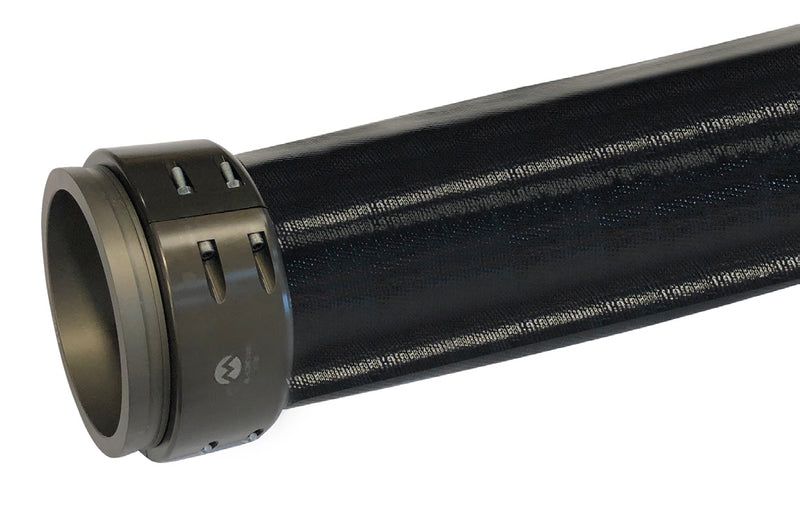

OFTRC-1200X660 OROFLEX® TERRAIN™ by Kuriyama | OFTRC Series | Discharge Layflat Hose Assembly | Polyurethane | with Oilfield Hose Couplings | 12" Size | Black | 660ft Length

Save $705.41

$731.66

$731.66 - $731.66

$731.66

$26.25

$26.25 - $26.25

$26.25

Kuriyama
OROFLEX® TERRAIN™ | OFTRC Series | Discharge Layflat Hose Assembly with Oilfield Hose Couplings

Built for high-volume fluid handling.

Ideal for the transfer of freshwater or frackwater.

Resistant to snaking, kinking, stretching and twisting.

Made in Europe.

Specifications for Variant SKU: OFTRC-1200X660 Kuriyama
Brand:	OROFLEX TERRAIN
Series:	OFTRC Series
Hose Color(s):	Black
Internal Diameter:	12.106in
Tubing Construction:	TPU
Cover Construction:	TPU

Other Features:
Applications:	Transfer of freshwater or frackwater.
Construction:	Black polyurethane (TPU) hose using an extruded through-the-weave process with circular woven high tenacity polyester reinforcement.
Service Temperature Range:	-58°F (-50°C) to +150°F (+65°C); Intermittent service to +175°F (+79°C)
Premium Polyurethane (TPU) Material - Exhibits exceptional resistance to abrasion, allowing for use in applications where severe abrasion is a factor and providing longer service life versus rubber or PVC hoses. Also, exhibits exceptional resistance to oils and petroleum based products. Couplings Included - Durable and lightweight oilfield hose couplings (AL-LDHC Series) on hose ends. Unique Woven Construction - Specially designed weave pattern provides resistance to kinking, stretching and twisting. Superior snaking resistance! Longer Lengths - Manufactured in special 660 foot lengths to reduce possible leaking points. Smooth TPU Tube - Provides low friction loss. Compact Design - Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses. Factory Tested - 100% Hydraulic tested with factory certificate. Supreme UV and Ozone Resistance - For extreme UV and ozone conditions. Cost Efficient - Savings for 16" versus using 2 x 12" lines. Made in Europe.

Part Number 660ft	Size		Wall Thickness	Working Pressure (PSI)	Burst Pressure	Tensile Strength
Part Number 660ft	(in)	(mm)	(in)	at 68°F	at 68°F	(lbs)
OFTRC-1000X660	10"	254.0mm	0.169"	200 PSI	500 PSI	100,310 lbs
OFTRC-1200X660	12"	304.8mm	0.185"	175 PSI	435 PSI	121,254 lbs
OFTRCH-1200X660	12"	304.8mm	0.185"	200 PSI	500 PSI	154,300 lbs
