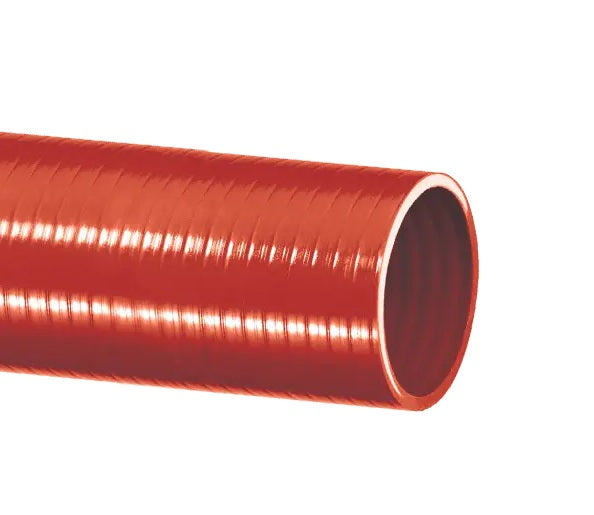

ORV075X100 Tigerflex® by Kuriyama | ORV™ Series | Standard-Duty Oil Resistant Suction Hose | PVC | 3/4" ID | 1.01" OD | 100ft

ORV075X100 Tigerflex® by Kuriyama | ORV™ Series | Standard-Duty Oil Resistant Suction Hose | PVC | 3/4" ID | 1.01" OD | 100ft Length

Save $54.65 Save $54.65
$277.25
$277.25 - $277.25
$277.25
$222.60
$222.60 - $222.60
$222.60
p>Kuriyama of America Inc.
Tigerflex® | ORV™ Series | Standard-Duty Oil Resistant Suction Hose | PVC

Designed for environmental and industrial use.

Ideal for oil skimming, oil slurry and suction, environmental cleanup, and hydrocarbon vapor recovery.

Made in the USA.


Package Quantity: 100 Foot

Specifications for Variant SKU: ORV075X100 Kuriyama | 100 |
Brand: Tigerflex
Series: ORV™ Series
Hose Color(s): Orange
Internal Diameter: 0.75in
Outer Diameter: 1.01in
Tubing Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Applications: Environmental cleanup.
Oil skimming.
Oil slurries.
Oil suction.
Vapor recovery - hydrocarbon emissions.
Tube: Oil resistant PVC. Reinforcement: Rigid PVC helix.
Cover: - Service Temperature Range: 5°F (-15°C) to +150°F (+65°C)
(Actual service temperature range is application dependent)
Specifications: Phthalate Free (10)
RoHS (11)
For more information please see the Kuriyama Tigerflex Hose Specifications Guide PDF.
What are the Features?
  • Oil Resistant PVC Tube - Made with special oil resistant compounds which exhibit medium resistance to oil and other hydrocarbons.
  • Smooth Outer Cover - Provides increased pressure rating and smooth surface for banding.
  • Made in the USA.
  • Note: Service life may vary depending on operating conditions and type of material being conveyed.
Part Number
100ft		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
in Hg		 Min.
Bending
Radius		 Weight
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 at
68°F		 lbs/ft
ORV075X100 3/4" 19.0mm 1.01" 25.6mm 100 PSI 60 PSI 28 in Hg 26 in Hg 3" 0.19 lbs
ORV100X100 1" 25.4mm 1.26" 32.0mm 80 PSI 50 PSI 28 in Hg 26 in Hg 3" 0.24 lbs
ORV150X100 1-1/2" 38.1mm 1.76" 44.6mm 60 PSI 40 PSI 28 in Hg 24 in Hg 5" 0.35 lbs
ORV200X100 2" 50.8mm 2.32" 59.0mm 60 PSI 40 PSI 28 in Hg 24 in Hg 7" 0.55 lbs
ORV300X100 3" 76.2mm 3.41" 86.7mm 65 PSI 40 PSI 28 in Hg 22 in Hg 10" 1.09 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
