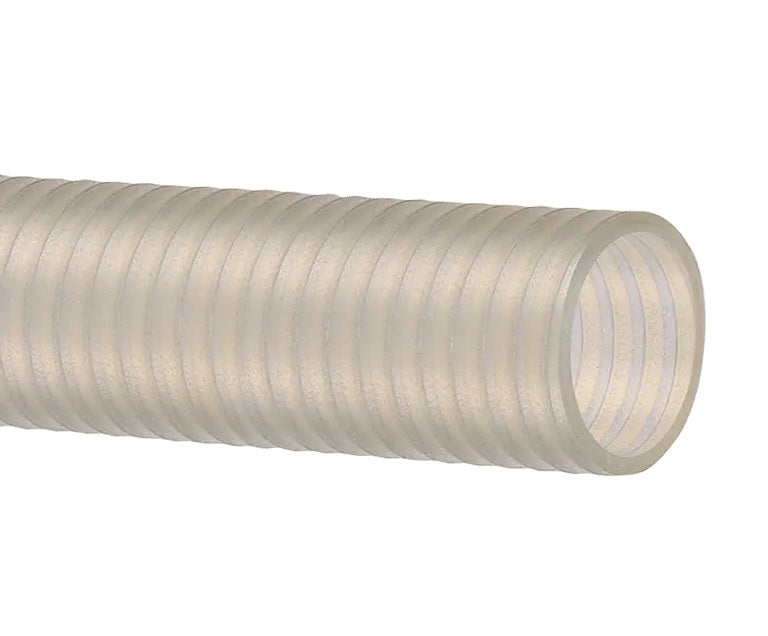

OV150X100 Tigerflex® by Kuriyama | OV™ Series | Heavy-Duty Oil Resistant Suction Hose | Polyurethane | 1-1/2" ID | 1.76" OD | 100ft Length

Save $233.58

$1,002.18

$1,002.18 - $1,002.18

$1,002.18

$768.60

$768.60 - $768.60

$768.60

p>Kuriyama of America Inc.
Tigerflex® | OV™ Series | Heavy-Duty Oil Resistant Suction Hose | Polyurethane

Designed for heavy-duty material handling service. Biofuel Friendly.

Ideal for abrasive material handling, material chutes, and heavy-duty oil suction applications.

Made in the USA.

Package Quantity: 100 Foot

Specifications for Variant SKU: OV150X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	OV Series
Hose Color(s):	White/Off-White
Internal Diameter:	1.50in
Outer Diameter:	1.76in
Tubing Construction:	Polyurethane
Applicable Specs & Approvals:	RoHS Compliant

What are the Features?
Applications:	Material handling - heavy duty abrasive. Material chutes. Oil suction - heavy duty.
Tube:	Polyurethane.	Reinforcement:	Rigid PVC helix.
Cover:	-	Service Temperature Range:	-40°F (-40°C) to +150°F (+65°C) (Actual service temperature range is application dependent)
Specifications:	Phthalate Free (10) RoHS (11) For more information please see the Kuriyama Tigerflex Hose Specifications Guide PDF.
Oil Resistant Polyurethane Tube - Handles most fuels and oils. Excellent resistance to gasoline, diesel, ethanol, blends (up to E30) and biodiesels (up to B100). Abrasion Resistant Polyurethane Tube - Solid polyurethane tube outlasts other materials when severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses. Transparent Construction - "See-the-flow." Allows for visual confi rmation of material flow. "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures. Biofuel Friendly Made in the USA. Note: Service life may vary depending on operating conditions and type of material being conveyed.

Part Number 100ft	ID		OD		Working Pressure (PSI)		Vacuum Rating in Hg		Min. Bending Radius	Weight
Part Number 100ft	in	mm	in	mm	at 68°F	at 104°F	at 68°F	at 104°F	at 68°F	lbs/ft
OV100X100	1"	25.4mm	1.26"	32.0mm	85 PSI	60 PSI	28 in Hg	26 in Hg	3"	0.23 lbs
OV125X100	1-1/4"	31.7mm	1.49"	37.8mm	85 PSI	60 PSI	28 in Hg	24 in Hg	5"	0.30 lbs
OV150X100	1-1/2"	38.1mm	1.76"	44.6mm	70 PSI	50 PSI	28 in Hg	24 in Hg	5"	0.35 lbs
OV200X100	2"	50.8mm	2.32"	59.0mm	65 PSI	45 PSI	28 in Hg	24 in Hg	7"	0.55 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
