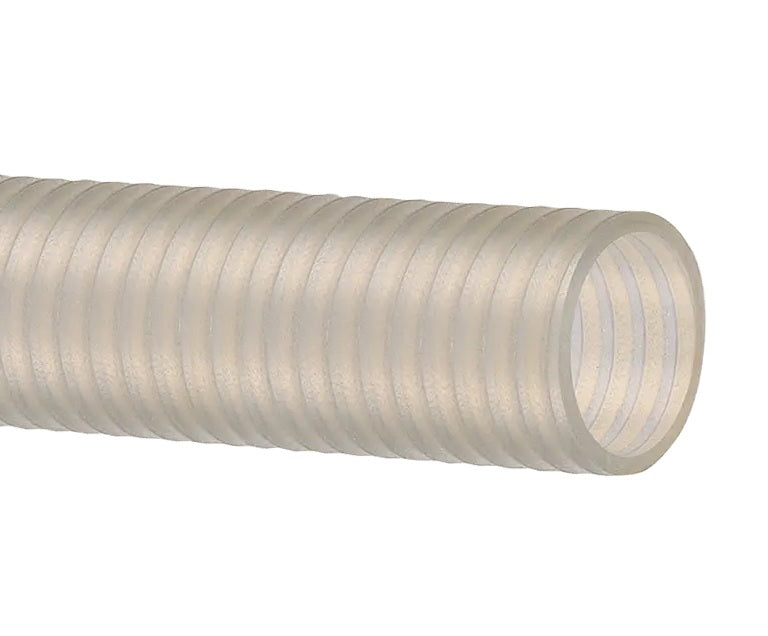

OV200X100 Tigerflex® by Kuriyama | OV™ Series | Heavy-Duty Oil Resistant Suction Hose | Polyurethane | 2" ID | 2.32" OD | 100ft

OV200X100 Tigerflex® by Kuriyama | OV™ Series | Heavy-Duty Oil Resistant Suction Hose | Polyurethane | 2" ID | 2.32" OD | 100ft Length

Save $403.42 Save $403.42
$1,616.02
$1,616.02 - $1,616.02
$1,616.02
$1,212.60
$1,212.60 - $1,212.60
$1,212.60
p>Kuriyama of America Inc.
Tigerflex® | OV™ Series | Heavy-Duty Oil Resistant Suction Hose | Polyurethane

Designed for heavy-duty material handling service. Biofuel Friendly.

Ideal for abrasive material handling, material chutes, and heavy-duty oil suction applications.

Made in the USA.


Package Quantity: 100 Foot

Specifications for Variant SKU: OV200X100 Kuriyama | 100 |
Brand: Tigerflex
Series: OV Series
Hose Color(s): White/Off-White
Internal Diameter: 2in
Outer Diameter: 2.32in
Tubing Construction: Polyurethane
Applicable Specs & Approvals: RoHS Compliant
Applications: Material handling - heavy duty abrasive.
Material chutes.
Oil suction - heavy duty.
Tube: Polyurethane. Reinforcement: Rigid PVC helix.
Cover: - Service Temperature Range: -40°F (-40°C) to +150°F (+65°C)
(Actual service temperature range is application dependent)
Specifications: Phthalate Free (10)
RoHS (11)
For more information please see the Kuriyama Tigerflex Hose Specifications Guide PDF.
What are the Features?
  • Oil Resistant Polyurethane Tube - Handles most fuels and oils. Excellent resistance to gasoline, diesel, ethanol, blends (up to E30) and biodiesels (up to B100).
  • Abrasion Resistant Polyurethane Tube - Solid polyurethane tube outlasts other materials when severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
  • Transparent Construction - "See-the-flow." Allows for visual confi rmation of material flow.
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
  • Biofuel Friendly
  • Made in the USA.
  • Note: Service life may vary depending on operating conditions and type of material being conveyed.
Part Number
100ft		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
in Hg		 Min.
Bending
Radius		 Weight
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 at
68°F		 lbs/ft
OV100X100 1" 25.4mm 1.26" 32.0mm 85 PSI 60 PSI 28 in Hg 26 in Hg 3" 0.23 lbs
OV125X100 1-1/4" 31.7mm 1.49" 37.8mm 85 PSI 60 PSI 28 in Hg 24 in Hg 5" 0.30 lbs
OV150X100 1-1/2" 38.1mm 1.76" 44.6mm 70 PSI 50 PSI 28 in Hg 24 in Hg 5" 0.35 lbs
OV200X100 2" 50.8mm 2.32" 59.0mm 65 PSI 45 PSI 28 in Hg 24 in Hg 7" 0.55 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
