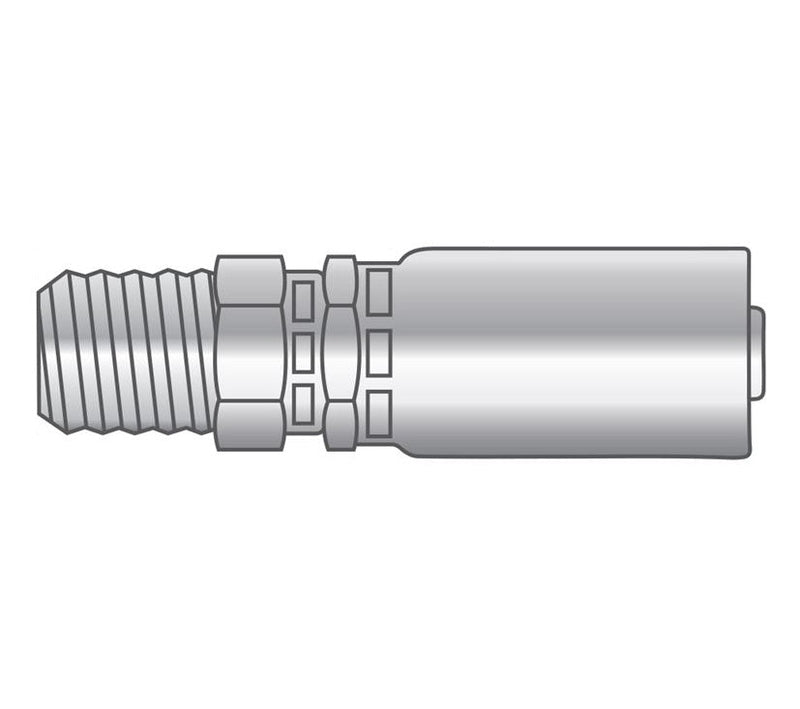

P-0202-MNPS Alfagomma Piranhaflex™ by Kuriyama | P Series | One-Piece Hydraulic Hose Fitting | -02 Hose ID x -02 Male NPTF Swivel 60° Seat | Carbon Steel | Pack of 5

Save $2.82

$9.88

$9.88 - $9.88

$9.88

$7.06

$7.06 - $7.06

$7.06

Kuriyama of America Inc.
Alfagomma | P Series | One-Piece Hydraulic Hose Fitting | Hose Barb x Male NPTF Swivel 60° Seat

Specifications for Variant SKU: P-0202-MNPS Kuriyama \| 5 \|
Brand:	Alfagomma, Piranhaflex
Series:	P Series
Shape (Orientation):	Straight
Ends Configuration:	1/8in Hose Barb, 1/8in Male NPTF
Material(s):	Carbon Steel
Special Properties:	Swivel
Compatible with the following Series:	PF321TC Series

About P-Series Fittings:
One-piece non-skive crimp fitting for use with: Piranhaflex™ PF321TC hose only.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.
Material:
Carbon Steel


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	Hex Dia. CH1	Weight
Part Number	Dash Size	(in.)	(mm)	Dash Size	Size (in) x TPI	(mm)	(mm)	lbs/each
P-0202-MNPS	02	1/8"	3.2mm	02	1/8-27	31.0mm	13mm	0.06 lbs
P-0404-MNPS	04	1/4"	6.4mm	04	1/4-18	45.0mm	17mm	0.16 lbs
P-0604-MNPS	06	3/8"	9.5mm	04	1/4-18	46.8mm	17mm	0.19 lbs
P-0606-MNPS	06	3/8"	9.5mm	06	3/8-18	47.7mm	19mm	0.23 lbs
P-0808-MNPS	08	1/2"	12.7mm	08	1/2-14	52.8mm	22mm	0.35 lbs
