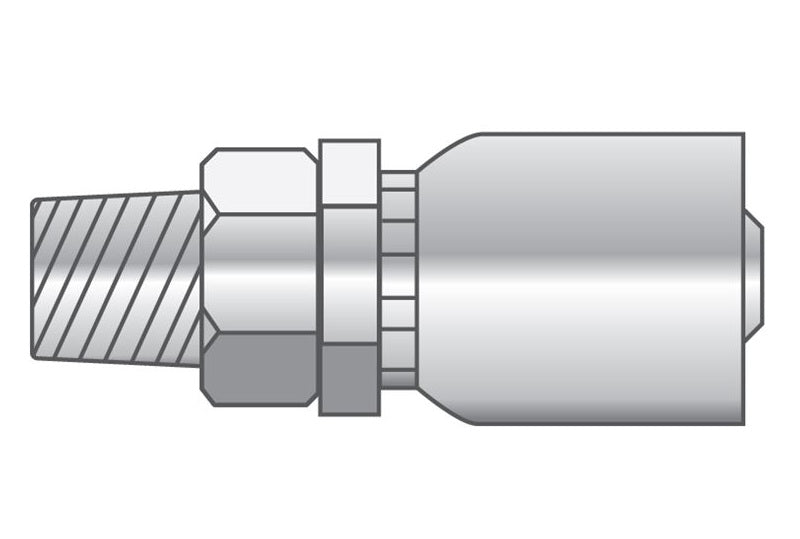

P-0304-MNPT-SS Alfagomma Piranhaflex™ by Kuriyama | P Series | One-Piece Hydraulic Hose Fitting | -03 Hose ID x -04 Male NPTF Solid 60° Seat | Stainless Steel

Name: P-0304-MNPT-SS Alfagomma Piranhaflex™ by Kuriyama | P Series | One-Piece Hydraulic Hose Fitting | -03 Hose ID x -04 Male NPTF Solid 60° Seat | Stainless Steel
Brand: Kuriyama
SKU: P-0304-MNPT-SS Kuriyama
Price: 34.36 USD
Availability: InStock

Save $13.74

$48.10

$48.10 - $48.10

$48.10

$34.36

$34.36 - $34.36

$34.36

Kuriyama of America Inc.
Alfagomma | P Series | One-Piece Hydraulic Hose Fitting | Hose Barb x Male NPTF Solid 60° Seat

Specifications for Variant SKU: P-0304-MNPT-SS Kuriyama
Brand:	Alfagomma, Piranhaflex
Series:	P Series
Ends Configuration:	3/16in Hose Barb, 1/4in Male NPTF
Material(s):	Stainless Steel
Compatible with the following Series:	PF321TC Series

About P-Series Fittings:
One-piece non-skive crimp fitting for use with: Piranhaflex™ PF321TC hose only.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.
Material:
Stainless Steel


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	Hex Dia.	Weight
Part Number	Dash Size	(in.)	(mm)	Dash Size	Size (in) x TPI	(mm)	CH1 (mm)	lbs/each
P-0304-MNPT-SS	03	3/16"	4.8mm	04	1/4-18	28.6mm	19mm	0.107 lbs
P-0404-MNPT-SS	04	1/4"	6.4mm	04	1/4-18	28.6mm	22mm	0.117 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
