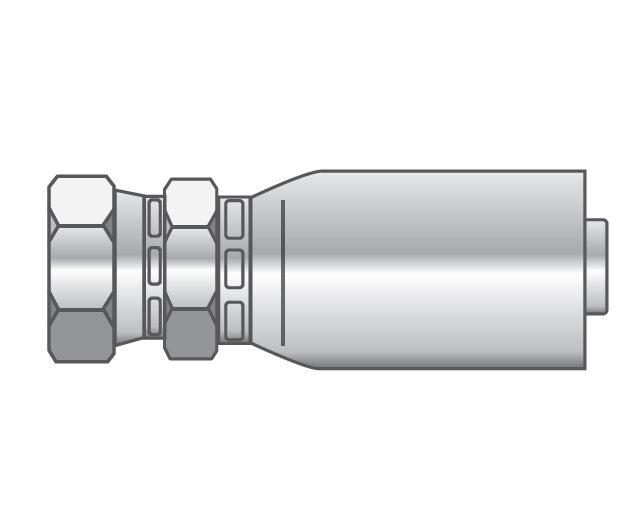

P-0404-FJDH Alfagomma Piranhaflex™ by Kuriyama | P Series | One-Piece Hydraulic Hose Fitting | -04 Hose ID x -04 Female JIC 37° | Carbon Steel | Pack of 5

Save $2.40

$8.40

$8.40 - $8.40

$8.40

$6.00

$6.00 - $6.00

$6.00

Kuriyama of America Inc.
Alfagomma | P Series | One-Piece Hydraulic Hose Fitting | Hose Barb x Female JIC 37° Seat

Specifications for Variant SKU: P-0404-FJDH Kuriyama \| 5 \|
Brand:	Alfagomma, Piranhaflex
Series:	P Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Hose Barb, 1/4in Female JIC
Material(s):	Carbon Steel
Compatible with the following Series:	PF321TC Series

About P-Series Fittings:
One-piece non-skive crimp fitting for use with: Piranhaflex™ PF321TC hose only.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.
Material:
Carbon Steel


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	Hex Dia.		Weight
Part Number	P-0204-FJDH	02	1/8"	3.2mm	04	7/16-20	16.0mm	16mm	13mm	0.07 lbs
P-0404-FJDH	04	1/4"	6.4mm	04	7/16-20	27.8mm	16mm	16mm	0.14 lbs
P-0405-FJDH	04	1/4"	6.4mm	05	1/2-20	27.2mm	16mm	19mm	0.16 lbs
P-0406-FJDH	04	1/4"	6.4mm	06	9/16-18	26.8mm	16mm	19mm	0.15 lbs
P-0605-FJDH	06	3/8"	9.5mm	05	1/2-20	29.8mm	16mm	19mm	0.20 lbs
P-0606-FJDH	06	3/8"	9.5mm	06	9/16-18	29.8mm	19mm	19mm	0.20 lbs
P-0608-FJDH	06	3/8"	9.5mm	08	3/4-16	30.6mm	19mm	24mm	0.22 lbs
P-0808-FJDH	08	1/2"	12.7mm	08	3/4-16	33.9mm	22mm	24mm	0.32 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.

Shop Parts by Kuriyama
