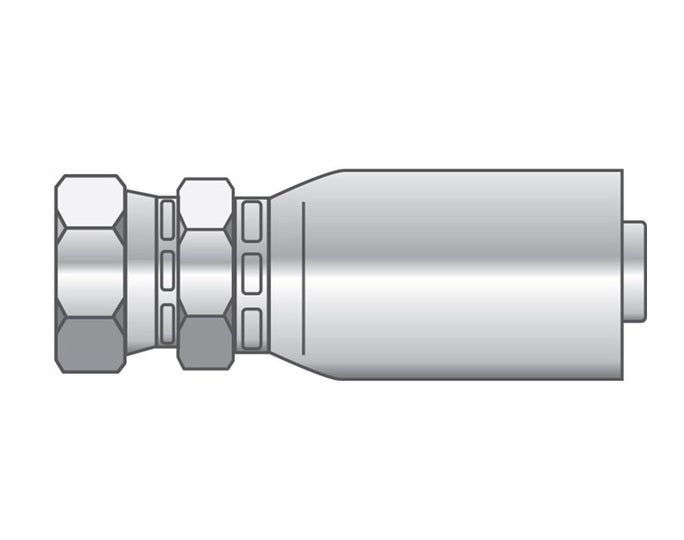

P-0404-FJDH-SS Alfagomma Piranhaflex™ by Kuriyama | P Series | One-Piece Hydraulic Hose Fitting | -04 Hose ID x -04 Female JIC 37° | Stainless Steel

P-0404-FJDH-SS Alfagomma Piranhaflex™ by Kuriyama | P Series | One-Piece Hydraulic Hose Fitting | -04 Hose ID x -04 Female JIC 37° | Stainless Steel

Save $15.67 Save $15.67
$54.84
$54.84 - $54.84
$54.84
$39.17
$39.17 - $39.17
$39.17

Kuriyama of America Inc.
Alfagomma | P Series | One-Piece Hydraulic Hose Fitting | Hose Barb x Female JIC 37° Seat
Specifications for Variant SKU: P-0404-FJDH-SS Kuriyama
Brand: Alfagomma, Piranhaflex
Series: P Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, 1/4in Female JIC
Material(s): Stainless Steel
Compatible with the following Series: PF321TC Series
About P-Series Fittings:
  • One-piece non-skive crimp fitting for use with:
    • Piranhaflex™ PF321TC hose only.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Stainless Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 Hex Dia. Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) x TPI		 (mm) CH1
(mm)		 lbs/each
P-0304-FJDH-SS 03 3/16" 4.8mm 04 7/16-20 19.1mm 17mm 0.113 lbs
P-0404-FJDH-SS 04 1/4" 6.4mm 04 7/16-20 19.1mm 19mm 0.123 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
