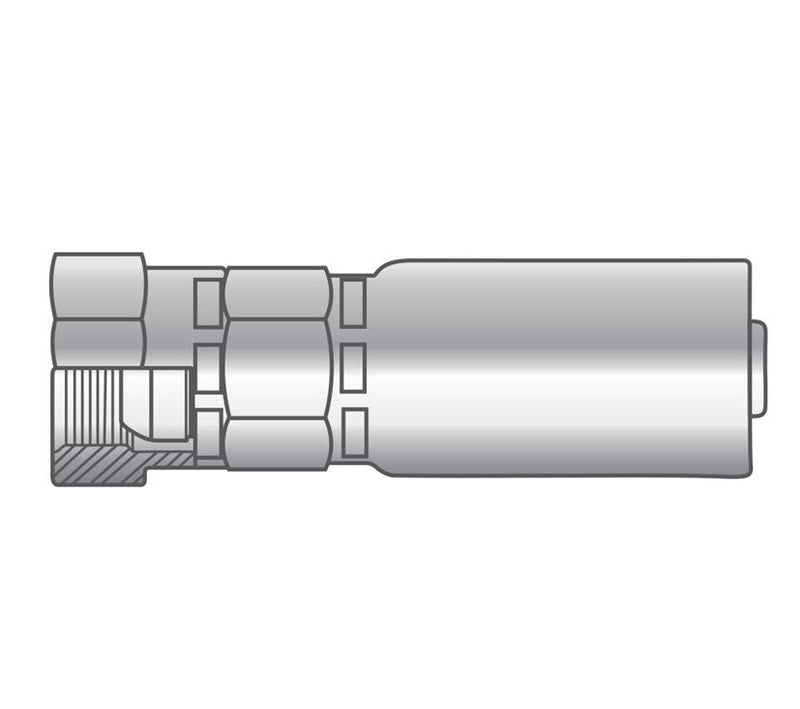

P-0404-FPMS Alfagomma Piranhaflex™ by Kuriyama | P Series | One-Piece Hydraulic Hose Fitting | -04 Hose ID x -04 Female NPSM Swivel 60° Seat | Carbon Steel | Pack of 5

Save $2.88 Save $2.88
Original price $10.07
Original price $10.07 - Original price $10.07
Original price $10.07
Current price $7.19
$7.19 - $7.19
Current price $7.19

Kuriyama of America Inc.
Alfagomma | P Series | One-Piece Hydraulic Hose Fitting | Hose Barb x Female NPSM Swivel 60° Seat


Specifications for Variant SKU: P-0404-FPMS Kuriyama | 5 |
Brand: Alfagomma, Piranhaflex
Series: P Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, 1/4in Female NPSM
Material(s): Carbon Steel
Special Properties: Swivel
Compatible with the following Series: PF321TC Series
About P-Series Fittings:
  • One-piece non-skive crimp fitting for use with:
    • Piranhaflex™ PF321TC hose only.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Carbon Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor
Hex Dia. Weight
Dash
Size
(in.) (mm) Dash Size Size
(in) x TPI
(mm) CH1
(mm)
CH2
(mm)
lbs/each
P-0404-FPMS 04 1/4" 6.4mm 04 1/4-18 27.9mm 17mm 19mm 0.15 lbs
P-0606-FPMS 06 3/8" 9.5mm 06 3/8-18 31.3mm 19mm 22mm 0.21 lbs
P-0808-FPMS 08 1/2" 12.7mm 08 1/2-14 30.9mm 22mm 27mm 0.31 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
