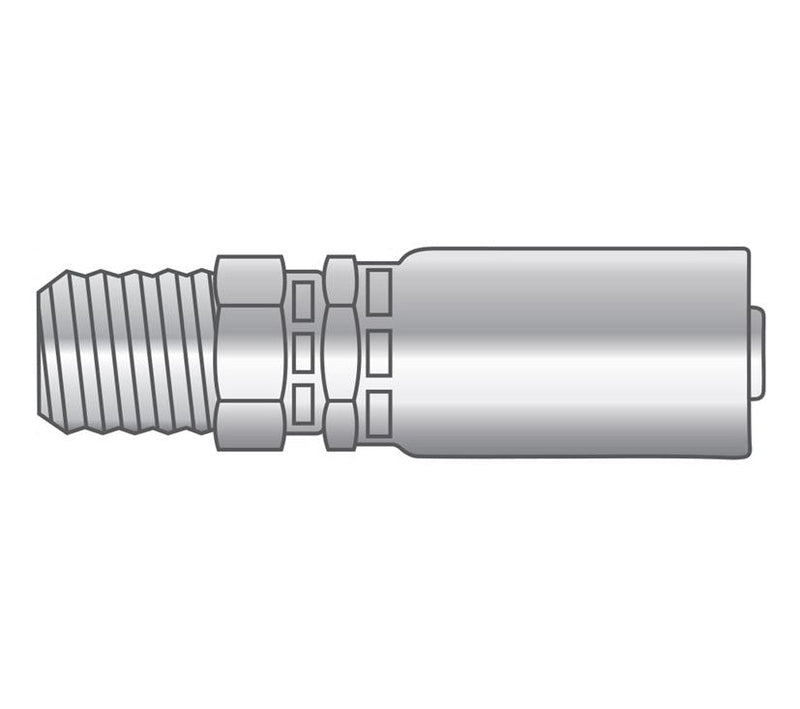

P-0404-MNPS Alfagomma Piranhaflex™ by Kuriyama | P Series | One-Piece Hydraulic Hose Fitting | -04 Hose ID x -04 Male NPTF Swivel 60° Seat | Carbon Steel | Pack of 5

Save $3.96 Save $3.96
Original price $13.85
Original price $13.85 - Original price $13.85
Original price $13.85
Current price $9.89
$9.89 - $9.89
Current price $9.89

Kuriyama of America Inc.
Alfagomma | P Series | One-Piece Hydraulic Hose Fitting | Hose Barb x Male NPTF Swivel 60° Seat


Specifications for Variant SKU: P-0404-MNPS Kuriyama | 5 |
Brand: Alfagomma, Piranhaflex
Series: P Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, 1/4in Male NPTF
Material(s): Carbon Steel
Special Properties: Swivel
Compatible with the following Series: PF321TC Series
About P-Series Fittings:
  • One-piece non-skive crimp fitting for use with:
    • Piranhaflex™ PF321TC hose only.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Carbon Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor
Hex Dia.
CH1
Weight
Dash
Size
(in.) (mm) Dash Size Size
(in) x TPI
(mm) (mm) lbs/each
P-0202-MNPS 02 1/8" 3.2mm 02 1/8-27 31.0mm 13mm 0.06 lbs
P-0404-MNPS 04 1/4" 6.4mm 04 1/4-18 45.0mm 17mm 0.16 lbs
P-0604-MNPS 06 3/8" 9.5mm 04 1/4-18 46.8mm 17mm 0.19 lbs
P-0606-MNPS 06 3/8" 9.5mm 06 3/8-18 47.7mm 19mm 0.23 lbs
P-0808-MNPS 08 1/2" 12.7mm 08 1/2-14 52.8mm 22mm 0.35 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
