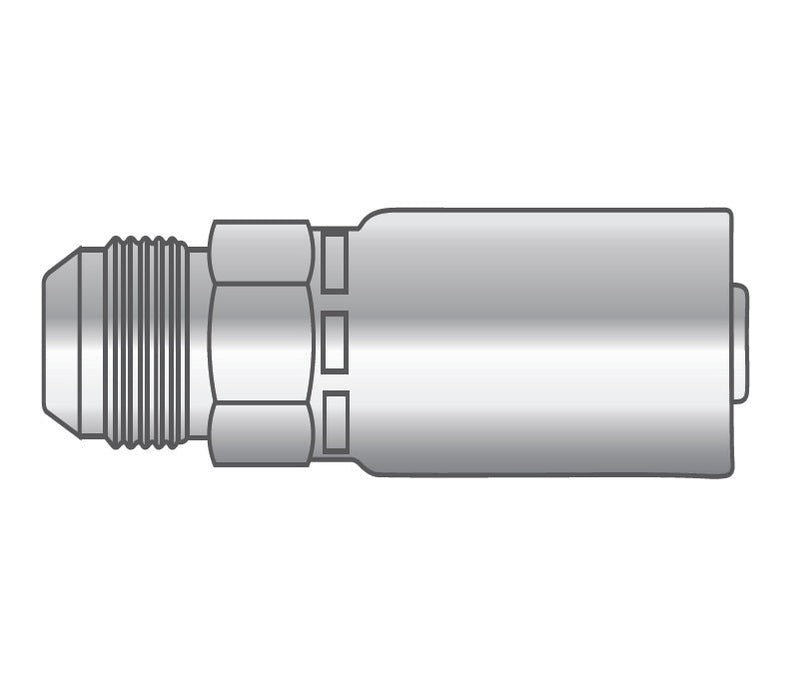

P-0605-MJIC Alfagomma Piranhaflex™ by Kuriyama | P Series | One-Piece Hydraulic Hose Fitting | -06 Hose ID x -05 Male JIC 37° Solid | Carbon Steel | Pack of 5

Save $3.31

$11.58

$11.58 - $11.58

$11.58

$8.27

$8.27 - $8.27

$8.27

Kuriyama of America Inc.
Alfagomma | P Series | One-Piece Hydraulic Hose Fitting | Hose Barb x Male JIC 37° Seat Solid

Specifications for Variant SKU: P-0605-MJIC Kuriyama \| 5 \|
Brand:	Alfagomma, Piranhaflex
Series:	P Series
Ends Configuration:	3/8in Hose Barb, 5/16in Male JIC
Material(s):	Carbon Steel
Compatible with the following Series:	PF321TC Series

About P-Series Fittings:
One-piece non-skive crimp fitting for use with: Piranhaflex™ PF321TC hose only.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.
Material:
Carbon Steel


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	Hex Dia.	Weight
Part Number	Dash Size	(in.)	(mm)	Dash Size	Size (in) x TPI	(mm)	CH1 (mm)	lbs/each
P-0404-MJIC	04	1/4"	6.4mm	04	1/4-18	30.9mm	17mm	0.11 lbs
P-0405-MJIC	04	1/4"	6.4mm	05	1/2-20	30.9mm	19mm	0.11 lbs
P-0406-MJIC	04	1/4"	6.4mm	06	9/16-18	33.4mm	17mm	0.13 lbs
P-0605-MJIC	06	3/8"	9.5mm	05	1/2-20	33.6mm	19mm	0.18 lbs
P-0606-MJIC	06	3/8"	9.5mm	06	9/16-18	33.7mm	22mm	0.16 lbs
P-0608-MJIC	06	3/8"	9.5mm	08	3/4-16	36.6mm	19mm	0.24 lbs
P-0808-MJIC	08	1/2"	12.7mm	08	3/4-16	35.2mm	22mm	0.27 lbs
