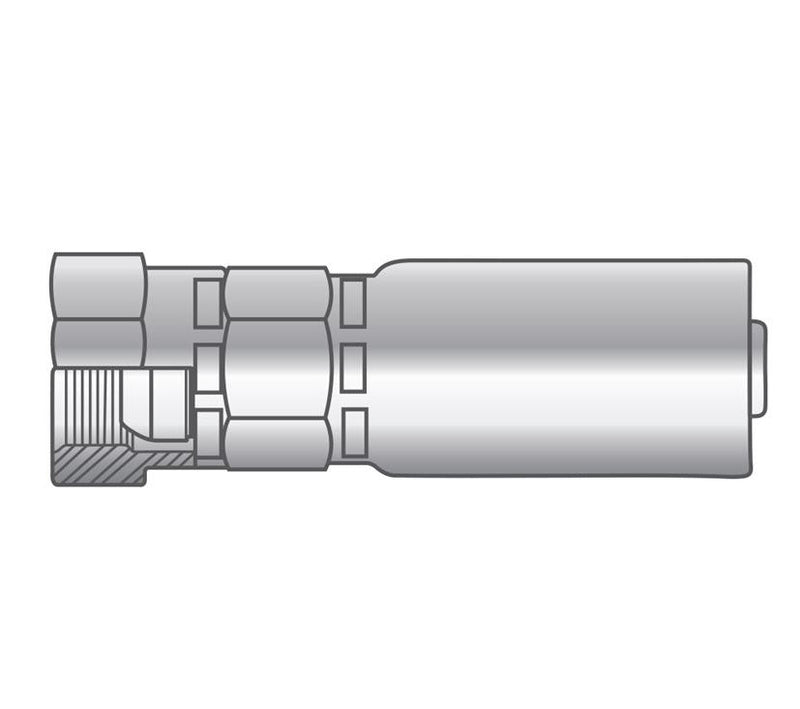

P-0808-FPMS Alfagomma Piranhaflex™ by Kuriyama | P Series | One-Piece Hydraulic Hose Fitting | -08 Hose ID x -08 Female NPSM Swivel 60° Seat | Carbon Steel | Pack of 5

Save $3.69

$12.92

$12.92 - $12.92

$12.92

$9.23

$9.23 - $9.23

$9.23

Kuriyama of America Inc.
Alfagomma | P Series | One-Piece Hydraulic Hose Fitting | Hose Barb x Female NPSM Swivel 60° Seat

Specifications for Variant SKU: P-0808-FPMS Kuriyama \| 5 \|
Brand:	Alfagomma, Piranhaflex
Series:	P Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Hose Barb, 1/2in Female NPSM
Material(s):	Carbon Steel
Special Properties:	Swivel
Compatible with the following Series:	PF321TC Series

About P-Series Fittings:
One-piece non-skive crimp fitting for use with: Piranhaflex™ PF321TC hose only.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.
Material:
Carbon Steel


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	Hex Dia.		Weight
Part Number	Dash Size	(in.)	(mm)	Dash Size	Size (in) x TPI	(mm)	CH1 (mm)	CH2 (mm)	lbs/each
P-0404-FPMS	04	1/4"	6.4mm	04	1/4-18	27.9mm	17mm	19mm	0.15 lbs
P-0606-FPMS	06	3/8"	9.5mm	06	3/8-18	31.3mm	19mm	22mm	0.21 lbs
P-0808-FPMS	08	1/2"	12.7mm	08	1/2-14	30.9mm	22mm	27mm	0.31 lbs
