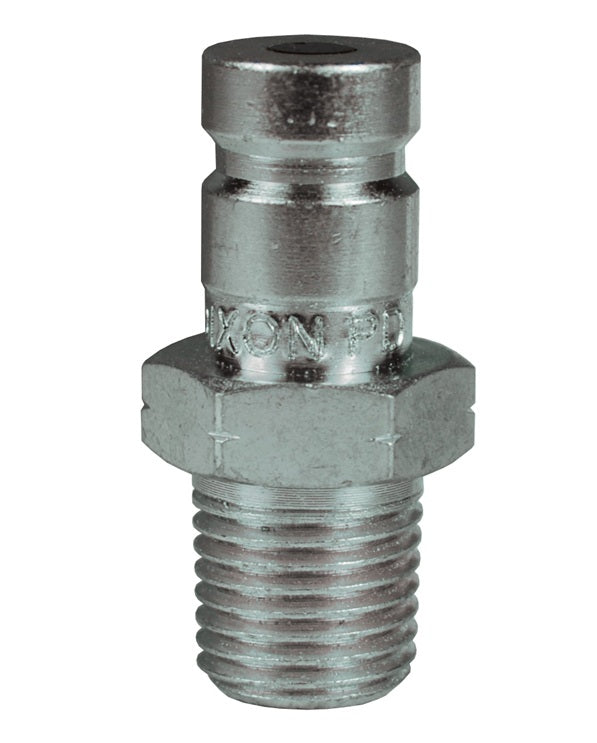

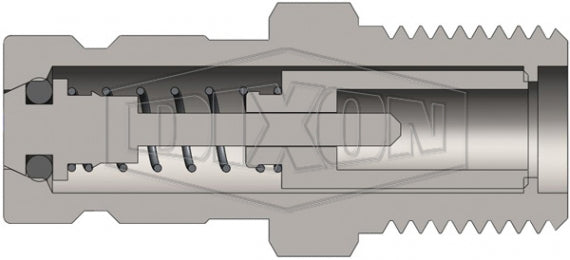

PD1M1 by Dixon Valve | Hydraulic Quick Disconnect Coupling | PD-Series | 1/8" Male NPT x 1/8" ISO15171-1 Diagnostic | Plug | Steel

Save $0.69

$6.17

$6.17 - $6.17

$6.17

$5.48

$5.48 - $5.48

$5.48

Dixon Valve & Coupling
Hydraulic Coupling: PD-Series ISO15171-1 Diagnostic Plug (Male Threads)

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: PD1M1 Dixon
Series:	PD-Series
Shape (Orientation):	Straight
Ends Configuration:	1/8in Male ISO-15171 Diagnostic QD Interchange, 1/8in Male NPTF
Material(s):	Steel

Compatibility & Interchange:	Interchangeable to ISO15171-1 Parker PD-Series, Danfoss/Eaton/Aeroquip FD90
Construction:	Machined components are manufactured using solid steel bar stock. Stainless steel springs. Carbon steel balls and retaining rings. Steel plugs are machined from solid steel bar stock and hardened. Steel componentry is plated using ROHS-compliant trivalent chrome.
Seal Components:	Nitrile seals are standard, providing a temperature range of -40°F to 250°F (-40°C to 121°C). PTFE anti-extrusion ring protects main coupler O-ring from dynamic impulse pressure damage.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

PD-Series \| ISO15171-1 Diagnostic Interchange Rated Pressure Chart
Body Size	Steel Coupler/Plug Coupled		Steel Plug Disconnected
Body Size	Max. Working	Burst	Max. Working	Burst
1/8"	6,000 PSI 400 Bar	18,700 PSI 1,300 Bar	6,000 PSI 400 Bar	24,000 PSI 1,600 Bar

PD-Series \| ISO15171-1 Diagnostic Plug (Male Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex
PD1M1	Plug/Male	1/8"	1/8" - 27 Male NPT	Steel	1.98" (50.2mm)	0.76" (19.3mm)	17"
PD1M2	Plug/Male	1/8"	1/4" - 18 Male NPT	Steel	1.48" (37.5mm)	0.76" (19.3mm)	17"

PD-Series \| ISO15171-1 Diagnostic Plug (Male Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex
PD1OM2	Plug/Male	1/8"	7/16" - 20 Male ORB	Steel	1.93" (49.0mm)	0.76" (19.3mm)	17"
PD1OM3	Plug/Male	1/8"	9/16" - 18 Male ORB	Steel	1.48" (37.5mm)	0.76" (19.3mm)	17"

PD-Series \| ISO15171-1 Diagnostic Coupler (Male Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex
1PDM2	Socket/Female	1/8"	1/4" - 18 Female NPT	Steel	2.28" (57.9mm)	0.98" (24.9mm)	21"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

Shop Parts by Dixon Valve & Coupling
