PF151R3-05-250R Alfagomma Piranhaflex™ by Kuriyama | PF151R3 Series | SAE 100R3 | Thermoplastic Hydraulic Hose | 5/16" ID | 0.520" OD | 1500 PSI | 250ft Length

Save $141.67

$495.84

$495.84 - $495.84

$495.84

$354.17

$354.17 - $354.17

$354.17

Kuriyama of America Inc.

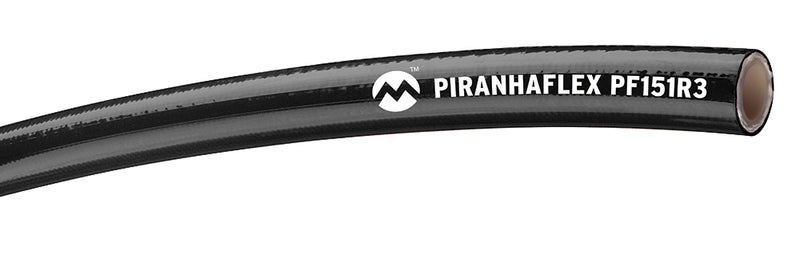

Alfagomma Piranhaflex | PF151R3 Series | SAE 100R3 | Thermoplastic Hydraulic Hose

Made in the USA.

For Lower pressure hydraulic applications: industrial equipment and vehicles (construction, agriculture, material handling, etc.)

Package Quantity: 250 Feet

Specifications for Variant SKU: PF151R3-05-250R Kuriyama \| 250 \|
Brand:	Alfagomma, Piranhaflex
Series:	PF151R3 Series
Hose Color(s):	Black
Dash Size:	-05
Internal Diameter:	0.3125in
Outer Diameter:	0.520in
Tubing Construction:	Nylon
Cover Construction:	Polyurethane
Applicable Specs & Approvals:	SAE 100R3
Special Properties:	Conductive Hose Cover, Pin Pricked Hose Cover
Compatible with the following Series:	PFR3 Series

Other Features:
Application:	Lower pressure hydraulic applications. Industrial equipment and vehicles (construction, agriculture, material handling, etc.)	SAE Rating:	Meets or exceeds SAE 100R3
Other Ratings:	-	Tube:	Nylon

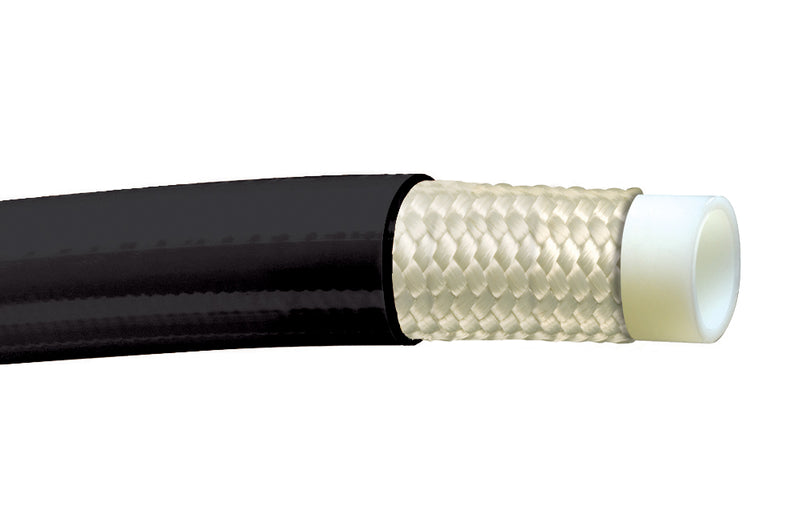

Reinforcement:	Braided high tensile strength fibers	Cover:	Pin pricked, abrasion resistant, conductive polyurethane
Service Temperature Range:	-40°F (-40°C) to +200°F (+93°C) for petroleum based hydraulic fluids
Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces. Lightweight - Approximately 45% lighter weight than similar rubber hoses. Pin Pricked Cover - Allows for the escape of gasses, if necessary, eliminating risk of cover blistering. NOTE: Max two pieces per reel, minimum pc. length 50ft.

Part Number By the Foot	Part Number 250ft Reel	ID		OD		Max. Working Pressure*	Min Bend Radius		Weight
Part Number By the Foot	Part Number 250ft Reel	(in.)	(mm)	(in.)	(mm)	PSI	(in.)	(mm)	(lbs./ft.)
PF151R3-04	PF151R3-04-250R	1/4"	6.4mm	0.410"	10.4mm	1500	1.50"	38.1mm	0.05 lbs/ft
-	PF151R3-05-250R	5/16"	8.1mm	0.520"	13.2mm	1500	1.75"	44.5mm	0.07 lbs/ft
-	PF151R3-06-250R	3/8"	9.7mm	0.610"	15.5mm	1250	2.50"	63.5mm	0.10 lbs/ft
-	PF151R3-08-250R	1/2"	13.1mm	0.750"	19.1mm	1000	3.00"	76.2mm	0.12 lbs/ft
