PF267NC-06-250R Alfagomma Piranhaflex™ by Kuriyama | PF267NC Series | SAE 100R7 | Kink Resistant Thermoplastic Hydraulic Hose | Non-Conductive | 3/8" ID | 0.651" OD | 2250 PSI | 250ft Length
PF267NC-06-250R Alfagomma Piranhaflex™ by Kuriyama | PF267NC Series | SAE 100R7 | Kink Resistant Thermoplastic Hydraulic Hose | Non-Conductive | 3/8" ID | 0.651" OD | 2250 PSI | 250ft Length
PF267NC-06-250R Alfagomma Piranhaflex™ by Kuriyama | PF267NC Series | SAE 100R7 | Kink Resistant Thermoplastic Hydraulic Hose | Non-Conductive | 3/8" ID | 0.651" OD | 2250 PSI | 250ft Length

PF267NC-06-250R Alfagomma Piranhaflex™ by Kuriyama | PF267NC Series | SAE 100R7 | Kink Resistant Thermoplastic Hydraulic Hose | Non-Conductive | 3/8" ID | 0.651" OD | 2250 PSI | 250ft Length

Save $227.33 Save $227.33
$795.66
$795.66 - $795.66
$795.66
$568.33
$568.33 - $568.33
$568.33

Kuriyama of America Inc.

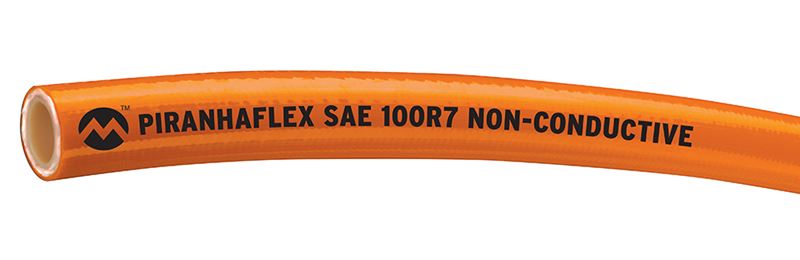

Alfagomma Piranhaflex | PF267NC Series | SAE 100R7 | Kink Resistant Non-Conductive Thermoplastic Hydraulic Hose

Made in the USA.

Suitable for industrial equipment and vehicles (construction, agriculture, material handling) in applications down to -65°F.


Package Quantity: 250 Feet

Specifications for Variant SKU: PF267NC-06-250R Kuriyama | 250 |
Brand: Alfagomma, Piranhaflex
Series: PF267NC Series
Hose Color(s): Orange
Dash Size: -06
Internal Diameter: 0.375in
Outer Diameter: 0.651in
Tubing Construction: Polyester
Cover Construction: Polyurethane
Applicable Specs & Approvals: SAE 100R7, SAE J517, ANSI 92.28, REACH Compliant
Compatible with the following Series: P Series  |   A Series
Application: Industrial equipment and vehicles (construction, agriculture, material handling, etc.).
Aerial equipment (PF267NC only).
Hydraulic oil and lubrication lines.		 SAE Rating: SAE 100R7 (ANSI A92.2)
Other Ratings: REACH (Non-Conductive ONLY)
SAE J517
ANSI 92.28 (3/16" - 1/2", For vehicle mounted aerial devices)		 Tube: Copolyester

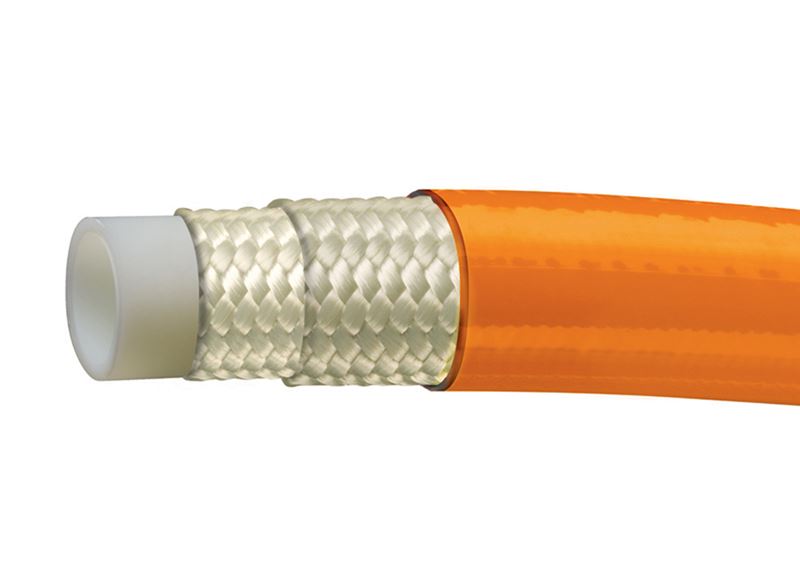

Reinforcement: Braided high tensile strength fibers Cover: Pin pricked, abrasion resistant polyurethane, in conductive black (PF267), or non-conductive orange (PF267NC series) versions.
Service Temperature Range: -65°F (-54°C) to +200°F (+93°C) for petroleum based hydraulic fluids
*Maximum 140°F (+60°C) for water and phosphate-ester based hydraulic fluids
Other Features:
  • Kink Resistant Technology - Proprietary design shown to exhibit 53% better resistance to kink initiation, and 16% less force to bend, versus competitive 100R7 hose in comparison testing.
  • Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces.
  • Low Temperature Flex - Designed to flex at temperatures as low as -65°F; well suited for cold storage applications.
  • Meets ANSI A92.2 (PF267NC Series Only) - Meets ANSI insulating requirement for aerial devices used in areas of high electricity. Tested to less than 50 microamperes leakage when subjected to 75,000 volts/ft. for 5 min.
  • Pin Pricked Cover (PF267 Series Only) - Allows for the escape of gasses, if necessary, eliminating risk of cover blistering.
  • NOTE: Boxed 250' reels or boxed 50' coils. Max two pieces per reel, minimum pc. length 50'.
PF267 Series | Conductive
Part Number
250ft Reel		 ID OD Max. Working
Pressure		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
PF267-03-250R 3/16" 4.8mm 0.415" 10.5mm 3000 PSI 0.75" 19mm 0.05 lbs/ft
PF267-04-250R 1/4" 6.4mm 0.496" 12.6mm 2750 PSI 1.50" 38mm 0.07 lbs/ft
PF267-05-250R 5/16" 8.1mm 0.580" 14.7mm 2500 PSI 1.75" 44mm 0.09 lbs/ft
PF267-06-250R 3/8" 9.7mm 0.651" 16.5mm 2250 PSI 2.00" 51mm 0.12 lbs/ft
PF267-08-250R 1/2" 13.1mm 0.834" 21.2mm 2000 PSI 3.00" 76mm 0.17 lbs/ft
PF267-12-250R 3/4" 19.1mm 1.050" 26.7mm 1250 PSI 6.00" 152mm 0.24 lbs/ft
PF267NC Series | Non-Conductive
Part Number
250ft Reel		 ID OD Max. Working
Pressure		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
PF267NC-03-250R 3/16" 4.8mm 0.415" 10.5mm 3000 PSI 0.75" 19mm 0.05 lbs/ft
PF267NC-04-250R 1/4" 6.4mm 0.496" 12.6mm 2750 PSI 1.50" 38mm 0.07 lbs/ft
PF267NC-05-250R 5/16" 8.1mm 0.580" 14.7mm 2500 PSI 1.75" 44mm 0.09 lbs/ft
PF267NC-06-250R 3/8" 9.7mm 0.651" 16.5mm 2250 PSI 2.00" 51mm 0.12 lbs/ft
PF267NC-08-250R 1/2" 13.1mm 0.834" 21.2mm 2000 PSI 3.00" 76mm 0.17 lbs/ft
PF267NC-12-250R 3/4" 19.1mm 1.050" 26.7mm 1250 PSI 6.00" 152mm 0.24 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
