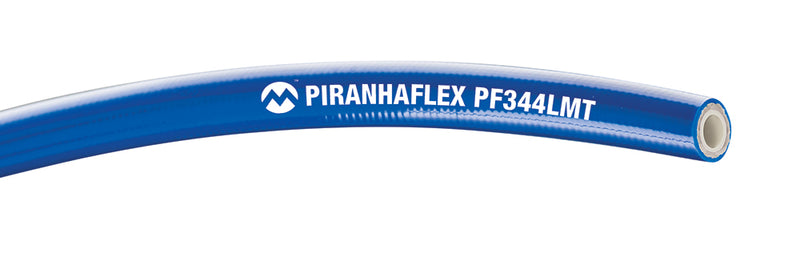

PF344LMT-04-250R Alfagomma Piranhaflex™ by Kuriyama | PF344LMT Series | Low Moisture Transmission Hose | 1/4" ID | 0.500" OD | 2750 PSI | 250ft Length

PF344LMT-04-250R Alfagomma Piranhaflex™ by Kuriyama | PF344LMT Series | Low Moisture Transmission Hose | 1/4" ID | 0.500" OD | 2750 PSI | 250ft Length

Save $162.00 Save $162.00
$567.00
$567.00 - $567.00
$567.00
$405.00
$405.00 - $405.00
$405.00

Kuriyama of America Inc.
Alfagomma Piranhaflex | PF344LMT Series | Low Moisture Transmission Hose

Designed for transferring urethane foam components, deionized, distilled, and pure water, as well as low moisture transmission applications.


Package Quantity: 250 Feet

Specifications for Variant SKU: PF344LMT-04-250R Kuriyama | 250 |
Brand: Alfagomma, Piranhaflex
Series: PF344LMT Series
Hose Color(s): Blue
Dash Size: -04
Internal Diameter: 0.25in
Outer Diameter: 0.50in
Tubing Construction: Polyolefin
Cover Construction: Polyurethane
Applicable Specs & Approvals: REACH Compliant
Compatible with the following Series: P Series  |   A Series
Application: Conveying urethane foam components.
Deionized water transfer.
Distilled water transfer.
Pure water transfer.
Low moisture transmission applications		 SAE Rating: -
Other Ratings: REACH Tube: - Polyolefin
Reinforcement: Braided, high tensile strength fibers Cover: Abrasion resistant polyurethane
Service Temperature Range: -40°F (-40°C) to +160°F (+71.1°C)
Other Features:
  • Transmission Resistant - Specially formulated tube minimizes extraction of particulates and minimizes moisture transmission while in service.
  • Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces.
  • Lightweight - Approximately 37% lighter weight than similar rubber hoses.
  • NOTE: Boxed 250' long reels. Maximum two pieces per 250' reel, minimum 50' piece length.
Part Number
250ft Reel		 ID OD Max. Working
Pressure		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
PF344LMT-04-250R 1/4" 6.4mm 0.500" 12.7mm 2750 PSI 2.5" 63.5mm 0.06 lbs/ft
PF344LMT-06-250R 3/8" 9.7mm 0.650" 16.5mm 2250 PSI 3.0" 76.2mm 0.11 lbs/ft
PF344LMT-08-250R 1/2" 13.1mm 0.830" 21.1mm 2000 PSI 4.0" 101.6mm 0.16 lbs/ft
PF344LMT-12-250R 3/4" 19.1mm 1.18" 30.0mm 1500 PSI 5.0" 127.0mm 0.28 lbs/ft
PF344LMT-16-250R 1" 25.4mm 1.46" 37.1mm 1500 PSI 6.0" 152.4mm 0.40 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
