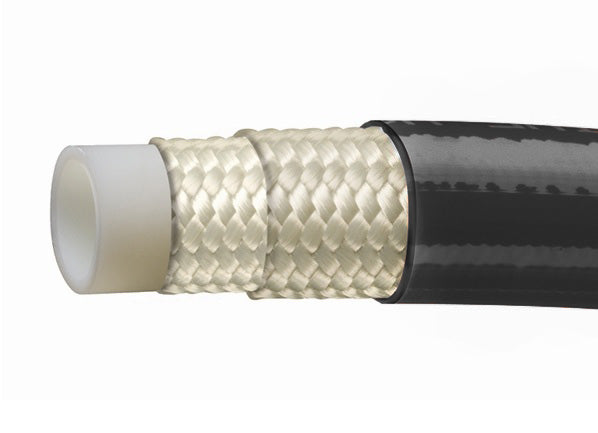

PF427-08-250R Alfagomma Piranhaflex™ by Kuriyama | PF427 Series | SAE 100R18 | Constant Pressure Hydraulic Hose | Conductive | 1/2" ID | 0.834" OD | 3000 PSI | 250ft Length

Save $364.67

$1,276.34

$1,276.34 - $1,276.34

$1,276.34

$911.67

$911.67 - $911.67

$911.67

Kuriyama of America Inc.
Alfagomma Piranhaflex | PF427 Series | SAE 100R18 | Conductive Constant Pressure Hydraulic Hose

Made in the USA.

Suitable for High pressure hydraulic applications such as industrial equipment and vehicles (construction, agriculture, material handling) in applications down to -65°F.

Package Quantity: 250 Feet

Specifications for Variant SKU: PF427-08-250R Kuriyama \| 250 \|
Brand:	Alfagomma, Piranhaflex
Series:	PF427 Series
Hose Color(s):	Black
Dash Size:	-08
Internal Diameter:	0.50in
Outer Diameter:	0.834in
Tubing Construction:	Polyester
Cover Construction:	Polyurethane
Applicable Specs & Approvals:	SAE 100R18, SAE J517
Special Properties:	Conductive Hose Cover, Pin Pricked Hose Cover
Compatible with the following Series:	P Series \| A Series

Other Features:
Application:	High pressure hydraulic applications. Industrial equipment and vehicles (construction, agriculture, material handling, etc.). Aerial equipment (PF427NC only). Hydraulic oil and lubrication lines. Hydraulic tools.	SAE Rating:	SAE 100R18
Other Ratings:	REACH (Non-Conductive ONLY) SAE J517	Tube:	Copolyester
Reinforcement:	Braided high tensile strength fibers.	Cover:	Pin pricked, abrasion resistant polyurethane, in conductive black (PF427), or non-conductive orange (PF427NC series) versions.
Service Temperature Range:	-65°F (-54°C) to +200°F (+93°C) for petroleum based hydraulic fluids *Maximum 140°F (+60°C) for water and phosphate-ester based hydraulic fluids.
Isobaric - Consistent 3,000 PSI working pressure regardless of hose size. Eliminates user risk of hose misapplication within a given pressure system. Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces. Lightweight - Approximately 32% lighter weight than similar rubber hoses. Low Temperature Flex - Designed to flex at temperatures as low as -65°F; well suited for cold storage applications. Pin Pricked Cover (PF427 Series Only) - Allows for the escape of gasses, if necessary, eliminating risk of cover blistering. NOTE: Boxed 250' reels or boxed 50' coils. Maximum two pieces per 250' reel, minimum 50' piece length.

PF427 Series \| Conductive
Part Number 250ft Reel	ID		OD		Max. Working Pressure	Min Bend Radius		Weight
Part Number 250ft Reel	(in.)	(mm)	(in.)	(mm)	PSI	(in.)	(mm)	(lbs./ft.)
PF427-04-250R	1/4"	6.4mm	0.496"	12.7mm	3000 PSI	1.50"	38mm	0.06 lbs/ft
PF427-06-250R	3/8"	9.7mm	0.650"	16.5mm	3000 PSI	2.00"	51mm	0.11 lbs/ft
PF427-08-250R	1/2"	13.1mm	0.834"	21.1mm	3000 PSI	3.00"	76mm	0.16 lbs/ft

PF427NC Series \| Non-Conductive
Part Number 250ft Reel	ID		OD		Max. Working Pressure	Min Bend Radius		Weight
Part Number 250ft Reel	(in.)	(mm)	(in.)	(mm)	PSI	(in.)	(mm)	(lbs./ft.)
PF427NC-04-250R	1/4"	6.4mm	0.496"	12.7mm	3000 PSI	1.50"	38mm	0.06 lbs/ft
PF427NC-06-250R	3/8"	9.7mm	0.650"	16.5mm	3000 PSI	2.00"	51mm	0.11 lbs/ft
PF427NC-08-250R	1/2"	13.1mm	0.834"	21.1mm	3000 PSI	3.00"	76mm	0.16 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
