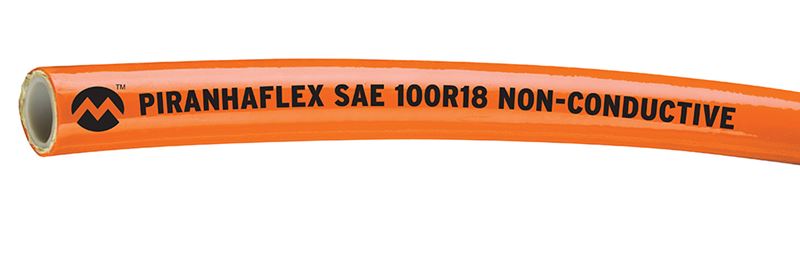

PF427NC-08-250R Alfagomma Piranhaflex™ by Kuriyama | PF427NC Series | SAE 100R18 | Constant Pressure Hydraulic Hose | Non-Conductive | 1/2" ID | 0.834" OD | 3000 PSI | 250ft Length

Save $388.67 Save $388.67
Original price $1,360.34
Original price $1,360.34 - Original price $1,360.34
Original price $1,360.34
Current price $971.67
$971.67 - $971.67
Current price $971.67

Kuriyama of America Inc.
Alfagomma Piranhaflex | PF427NC Series | SAE 100R18 | Non-Conductive Constant Pressure Hydraulic Hose

Made in the USA.

Suitable for High pressure hydraulic applications such as industrial equipment and vehicles (construction, agriculture, material handling) in applications down to -65°F.


Package Quantity: 250 Feet

Specifications for Variant SKU: PF427NC-08-250R Kuriyama | 250 |
Brand: Alfagomma, Piranhaflex
Series: PF427NC Series
Hose Color(s): Orange
Dash Size: -08
Internal Diameter: 0.50in
Outer Diameter: 0.834in
Tubing Construction: Polyester
Cover Construction: Polyurethane
Applicable Specs & Approvals: SAE 100R18, SAE J517, REACH Compliant
Compatible with the following Series: P Series  |   A Series
Application: High pressure hydraulic applications.
Industrial equipment and vehicles (construction, agriculture, material handling, etc.).
Aerial equipment (PF427NC only).
Hydraulic oil and lubrication lines.
Hydraulic tools.
SAE Rating: SAE 100R18
Other Ratings: REACH (Non-Conductive ONLY)
SAE J517
Tube: Copolyester

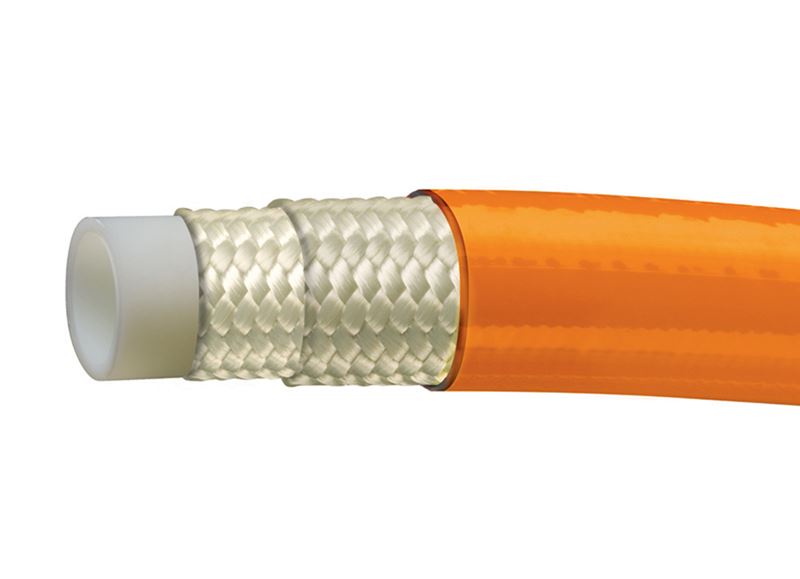

Reinforcement: Braided high tensile strength fibers. Cover: Pin pricked, abrasion resistant polyurethane, in conductive black (PF427), or non-conductive orange (PF427NC series) versions.
Service Temperature Range: -65°F (-54°C) to +200°F (+93°C) for petroleum based hydraulic fluids
*Maximum 140°F (+60°C) for water and phosphate-ester based hydraulic fluids.
Other Features:
  • Isobaric - Consistent 3,000 PSI working pressure regardless of hose size. Eliminates user risk of hose misapplication within a given pressure system.
  • Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces.
  • Lightweight - Approximately 32% lighter weight than similar rubber hoses.
  • Low Temperature Flex - Designed to flex at temperatures as low as -65°F; well suited for cold storage applications.
  • Pin Pricked Cover (PF427 Series Only) - Allows for the escape of gasses, if necessary, eliminating risk of cover blistering.
  • NOTE: Boxed 250' reels or boxed 50' coils. Maximum two pieces per 250' reel, minimum 50' piece length.
PF427 Series | Conductive
Part Number
250ft Reel
ID OD Max. Working
Pressure
Min Bend
Radius
Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
PF427-04-250R 1/4" 6.4mm 0.496" 12.7mm 3000 PSI 1.50" 38mm 0.06 lbs/ft
PF427-06-250R 3/8" 9.7mm 0.650" 16.5mm 3000 PSI 2.00" 51mm 0.11 lbs/ft
PF427-08-250R 1/2" 13.1mm 0.834" 21.1mm 3000 PSI 3.00" 76mm 0.16 lbs/ft
PF427NC Series | Non-Conductive
Part Number
250ft Reel
ID OD Max. Working
Pressure
Min Bend
Radius
Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
PF427NC-04-250R 1/4" 6.4mm 0.496" 12.7mm 3000 PSI 1.50" 38mm 0.06 lbs/ft
PF427NC-06-250R 3/8" 9.7mm 0.650" 16.5mm 3000 PSI 2.00" 51mm 0.11 lbs/ft
PF427NC-08-250R 1/2" 13.1mm 0.834" 21.1mm 3000 PSI 3.00" 76mm 0.16 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
