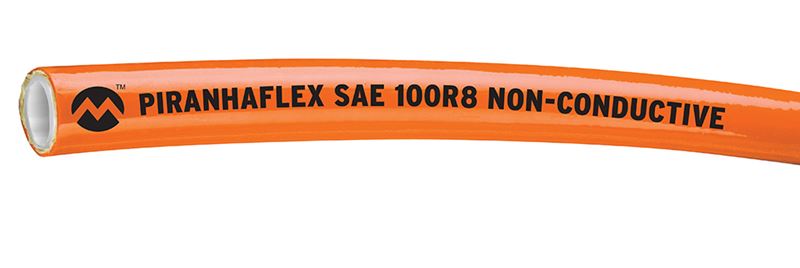

PF528NC-12-250R Alfagomma Piranhaflex™ by Kuriyama | PF528NC Series | SAE 100R8 | Kink Resistant Thermoplastic Hydraulic Hose | Non-Conductive | 3/4" ID | 1.220" OD | 2250 PSI | 250ft Length

Save $663.33

$2,321.66

$2,321.66 - $2,321.66

$2,321.66

$1,658.33

$1,658.33 - $1,658.33

$1,658.33

Kuriyama of America Inc.
Alfagomma Piranhaflex | PF528NC Series | SAE 100R8 | Non-Conductive Kink Resistant Thermoplastic Hydraulic Hose

Made in the USA.

Suitable for High pressure hydraulic applications such as industrial equipment and vehicles (construction, agriculture, material handling) in applications down to -65°F.

Package Quantity: 250 Feet

Specifications for Variant SKU: PF528NC-12-250R Kuriyama \| 250 \|
Brand:	Alfagomma, Piranhaflex
Series:	PF528NC Series
Hose Color(s):	Orange
Dash Size:	-12
Internal Diameter:	0.75in
Outer Diameter:	1.22in
Tubing Construction:	Nylon
Cover Construction:	Polyurethane
Applicable Specs & Approvals:	SAE 100R8, REACH Compliant
Compatible with the following Series:	A Series

Other Features:
Application:	High pressure hydraulic applications. Industrial equipment and vehicles (construction, agriculture, material handling, etc.). Aerial equipment (PF528NC only). Hydraulic oil and lubrication lines. Hydraulic tools.	SAE Rating:	SAE 100R8
Other Ratings:	REACH (Non-Conductive ONLY)	Tube:	Nylon
Reinforcement:	Braided, high tensile strength fibers	Cover:	Pin pricked, abrasion resistant polyurethane, in conductive black (PF528), or non-conductive orange (PF528NC) versions.
Service Temperature Range:	-65°F (-54°C) to +200°F (+93°C) for petroleum based hydraulic fluids
Kink Resistant Technology - Proprietary design shown to exhibit 50% better resistance to kink initiation, and 17% less force to bend, versus competitive 100R8 hose in comparison testing. Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces. Lightweight - Approximately 24% lighter weight than similar rubber hoses. Low Temperature Flex - Designed to flex at temperatures as low as -65°F; well suited for cold storage applications. Pin Pricked Cover (PF528 Series Only) - Allows for the escape of gasses, if necessary, eliminating risk of cover blistering. NOTE: Boxed 250' long reels. Maximum two pieces per 250' reel, minimum 50' piece length.

PF528 Series \| Conductive
Part Number 250ft Reel	ID		OD		Max. Working Pressure	Min Bend Radius		Weight
Part Number 250ft Reel	(in.)	(mm)	(in.)	(mm)	PSI	(in.)	(mm)	(lbs./ft.)
PF528-03-250R	3/16"	4.8mm	0.475"	12.1mm	5000 PSI	0.75"	19mm	0.073 lbs/ft
PF528-04-250R	1/4"	6.5mm	0.584"	14.8mm	5000 PSI	2.00"	50mm	0.112 lbs/ft
PF528-06-250R	3/8"	9.7mm	0.750"	19.1mm	4000 PSI	2.50"	64mm	0.154 lbs/ft
PF528-08-250R	1/2"	12.9mm	0.935"	23.7mm	3500 PSI	3.50"	89mm	0.236 lbs/ft
PF528-12-250R	3/4"	19.1mm	1.220"	30.9mm	2250 PSI	4.50"	114mm	0.352 lbs/ft
PF528-16-250R	1"	25.4mm	1.620"	41.1mm	2000 PSI	6.00"	152mm	0.584 lbs/ft

PF528NC Series \| Non-Conductive
Part Number 250ft Reel	ID		OD		Max. Working Pressure	Min Bend Radius		Weight
Part Number 250ft Reel	(in.)	(mm)	(in.)	(mm)	PSI	(in.)	(mm)	(lbs./ft.)
PF528NC-03-250R	3/16"	4.8mm	0.475"	12.1mm	5000 PSI	0.75"	19mm	0.073 lbs/ft
PF528NC-04-250R	1/4"	6.5mm	0.584"	14.8mm	5000 PSI	2.00"	50mm	0.112 lbs/ft
PF528NC-06-250R	3/8"	9.7mm	0.750"	19.1mm	4000 PSI	2.50"	64mm	0.154 lbs/ft
PF528NC-08-250R	1/2"	12.9mm	0.935"	23.7mm	3500 PSI	3.50"	89mm	0.236 lbs/ft
PF528NC-12-250R	3/4"	19.1mm	1.220"	30.9mm	2250 PSI	4.50"	114mm	0.352 lbs/ft
PF528NC-16-250R	1"	25.4mm	1.620"	41.1mm	2000 PSI	6.00"	152mm	0.584 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
