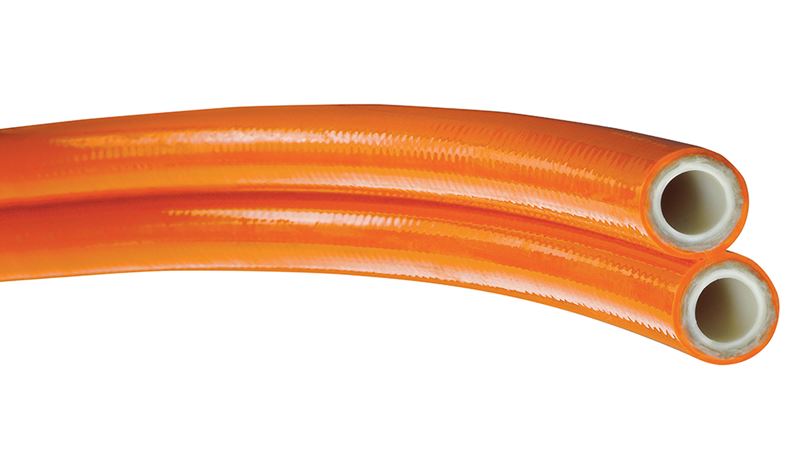

PF528NCTL-04-250R Alfagomma Piranhaflex™ by Kuriyama | PF528NCTL Series | SAE 100R8 | Kink Resistant Twin Line Thermoplastic Hydraulic Hose | Non-Conductive | 1/4" ID | 0.584" OD | 5000 PSI | 250ft Length

PF528NCTL-04-250R Alfagomma Piranhaflex™ by Kuriyama | PF528NCTL Series | SAE 100R8 | Kink Resistant Twin Line Thermoplastic Hydraulic Hose | Non-Conductive | 1/4" ID | 0.584" OD | 5000 PSI | 250ft Length

Save $707.00 Save $707.00
$2,474.50
$2,474.50 - $2,474.50
$2,474.50
$1,767.50
$1,767.50 - $1,767.50
$1,767.50

Kuriyama of America Inc.
Alfagomma Piranhaflex | PF528NCTL Series | SAE 100R8 | Twin Line Non-Conductive Kink Resistant Thermoplastic Hydraulic Hose

Made in the USA.

Suitable for High pressure hydraulic applications such as industrial equipment and vehicles (construction, agriculture, material handling) in applications down to -65°F.


Package Quantity: 250 Feet

Specifications for Variant SKU: PF528NCTL-04-250R Kuriyama | 250 |
Brand: Alfagomma, Piranhaflex
Series: PF528NCTL Series
Hose Color(s): Orange
Dash Size: -04
Internal Diameter: 0.25in
Outer Diameter: 0.584in
Tubing Construction: Nylon
Cover Construction: Polyurethane
Applicable Specs & Approvals: SAE 100R8, REACH Compliant
Special Properties: Twin Line
Compatible with the following Series: A Series
Application: High pressure hydraulic applications.
Industrial equipment and vehicles (construction, agriculture, material handling, etc.).
Aerial equipment (PF528NCTL only).
Hydraulic oil and lubrication lines.
Hydraulic tools.		 SAE Rating: SAE 100R8
Other Ratings: REACH (Non-Conductive ONLY) Tube: Nylon
Reinforcement: Braided, high tensile strength fibers Cover: Pin pricked, abrasion resistant polyurethane, in conductive black (PF528TL), or non-conductive orange (PF528NCTL) versions.
Service Temperature Range: -65°F (-54°C) to +200°F (+93°C) for petroleum based hydraulic fluids
Other Features:
  • Kink Resistant Technology - Proprietary design shown to exhibit 50% better resistance to kink initiation, and 17% less force to bend, versus competitive 100R8 hose in comparison testing.
  • Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces.
  • Lightweight - Approximately 24% lighter weight than similar rubber hoses.
  • Low Temperature Flex - Designed to flex at temperatures as low as -65°F; well suited for cold storage applications.
  • Pin Pricked Cover (PF528TL Series Only) - Allows for the escape of gasses, if necessary, eliminating risk of cover blistering.
  • NOTE: Boxed 250' long reels. Maximum two pieces per 250' reel, minimum 50' piece length.
PF528TL Series | Conductive
Part Number
250ft Reel		 ID OD Max. Working
Pressure		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
PF528TL-04-250R 1/4" 6.5mm 0.584" 14.8mm 5000 PSI 2.00" 50mm 0.22 lbs/ft
PF528TL-06-250R 3/8" 9.7mm 0.750" 19.1mm 4000 PSI 2.50" 64mm 0.31 lbs/ft
PF528TL-08-250R 1/2" 12.9mm 0.935" 23.7mm 3500 PSI 3.50" 89mm 0.47 lbs/ft
PF528NCTL Series | Non-Conductive
Part Number
250ft Reel		 ID OD Max. Working
Pressure		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
PF528NCTL-04-250R 1/4" 6.5mm 0.584" 14.8mm 5000 PSI 2.00" 50mm 0.22 lbs/ft
PF528NCTL-06-250R 3/8" 9.7mm 0.750" 19.1mm 4000 PSI 2.50" 64mm 0.31 lbs/ft
PF528NCTL-08-250R 1/2" 12.9mm 0.935" 23.7mm 3500 PSI 3.50" 89mm 0.47 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
