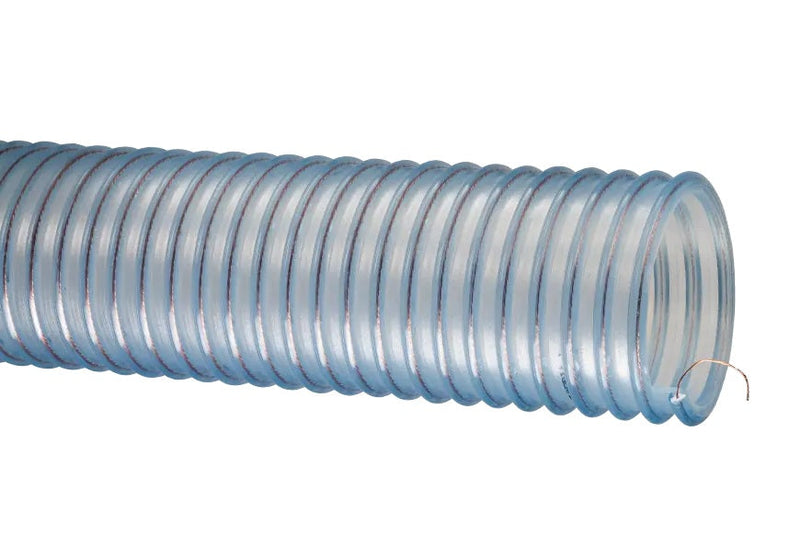

PF600X50 Tigerflex® PLAS-T-FLO™ by Kuriyama | PF™ Series | Heavy-Duty Food Grade Material Handling Hose | with Grounding Wire | Polyurethane | 6" ID | 6.91" OD | 50ft Length

PF600X50 Tigerflex® PLAS-T-FLO™ by Kuriyama | PF™ Series | Heavy-Duty Food Grade Material Handling Hose | with Grounding Wire | Polyurethane | 6" ID | 6.91" OD | 50ft Length

$0.00 - $0.00
$0.00
$3,296.10
$3,296.10 - $3,296.10
$3,296.10
p>Kuriyama of America Inc.
Tigerflex® | PLAS-T-FLO™ PF™ Series | Heavy-Duty Food Grade Material Handling Hose with Grounding Wire | Polyurethane

Designed for heavy-duty abrasive food-grade material handling.

Ideal for pharmaceutical product transfer and use in plastic processing and pneumatic conveying equipment.

Made in the USA.


Package Quantity: 50 Foot

Specifications for Variant SKU: PF600X50 Kuriyama | 50 |
Brand: Tigerflex, PLAS-T-FLO
Series: PF Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 6in
Outer Diameter: 6.91in
Tubing Construction: Polyurethane
Applicable Specs & Approvals: BSE/TSE, FDA 21 CFR Part 170.199, FDA 21 CFR Part 177.2600, FDA 21 CFR Part 175.105, RoHS Compliant, Applicable USDA Requirements
Special Properties: Ground Wire in Hose, Outer Helix Protection
Heavy-Duty Food Grade Hose

Tigerflex™ PF Series

Heavy-duty abrasive food grade material handling hose featuring our thickest extra thick single-ply polyurethane tube, with a rigid PVC helix and embedded grounding wire — designed for dry applications where severe abrasion is a factor.

♦

Abrasion Resistant

Our thickest single-ply polyurethane tube

✓

Food Grade Materials

Liner complies with applicable FDA and USDA requirements

⚡

Grounding Wire

Helps prevent static build-up for added safety

❄

Cold-Flex Materials

Remains flexible in sub-zero temperatures

◎

See-the-Flow

Transparent construction for visual confirmation of flow

1

What is this product used for?
  • Food grade material handling — heavy duty abrasive
  • Pharmaceutical product transfer
  • Plastic processing equipment
  • Pneumatic conveying equipment
2

What are the key specifications?
Tube

Polyurethane

Reinforcement

Rigid PVC helix and grounding wire

Cover

—

Service Temperature Range

-40°F (-40°C) to +150°F (+65°C)
(Actual service temperature range is application dependent)

Specifications

BSE/TSE (02) · FDA (03) · FDA (05) · Phthalate Free (10) · RoHS (11) · USDA (12)

3

What are the main product features?
  • Extra Thick Single-Ply Abrasion Resistant Polyurethane Tube — Our thickest single-ply polyurethane tube! Designed for dry applications where severe abrasion is a factor. Provides longer life and lower operating costs versus rubber hoses.
  • Food Grade Materials — Hose Liner (Product Contact Surface) complies with applicable FDA (04) and USDA (10) requirements.
  • Transparent Construction — "See-the-flow." Allows for visual confirmation of material flow.
  • Grounding Wire — Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. It's embedded within the rigid helix to prevent contamination of transferred materials.
  • "Cold-Flex" Materials — Hose remains flexible in sub-zero temperatures.
  • Easy Slide Helix — Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
  • Oil Resistant Polyurethane Tube — Resists most animal and petroleum based oils.
  • Made in the USA
4

Which sizes are available?
Part
Number		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
in Hg		 Min.
Bending
Radius		 Length
(ft)		 Weight
(lbs/ft)
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 at
68°F
3" ID
PF300X100 3" 76.2mm 3.39" 86.0mm 35 PSI 15 PSI 28 in Hg 25 in Hg 10" 100ft 1.50 lbs
4" ID
PF400X50 4" 101.6mm 4.84" 123.0mm 30 PSI 15 PSI 28 in Hg 25 in Hg 12" 50ft 1.96 lbs
PF400X100 4" 101.6mm 4.84" 123.0mm 30 PSI 15 PSI 28 in Hg 25 in Hg 12" 100ft 1.96 lbs
5" ID
PF500X50 5" 127.0mm 5.87" 149.0mm 30 PSI 15 PSI 25 in Hg 22 in Hg 13" 50ft 2.50 lbs
PF500X100 5" 127.0mm 5.87" 149.0mm 30 PSI 15 PSI 25 in Hg 22 in Hg 13" 100ft 2.50 lbs
6" ID
PF600X50 6" 152.4mm 6.91" 175.5mm 30 PSI 15 PSI 25 in Hg 22 in Hg 16" 50ft 3.18 lbs
PF600X100 6" 152.4mm 6.91" 175.5mm 30 PSI 15 PSI 25 in Hg 22 in Hg 16" 100ft 3.18 lbs
5

Where can I find product documents?
PDF

Kuriyama Tigerflex Hose Specifications Guide PDF

Consult the Tigerflex Hose Specifications Guide for more information on BSE/TSE, FDA, Phthalate Free, RoHS and USDA compliance.

i
Service life may vary depending on operating conditions and type of material being conveyed. Actual service temperature range is application dependent.

How is this product sold?

Sold by the coil in 50 ft and 100 ft lengths, depending on hose size. See the size chart above for available part numbers.


⚠ CAUTION: Grounding wire is designed to help dissipate static charge when extracted and connected to ground. Hose is not to be used in combustible situations unless it has been determined by the end user the application is not sufficient to result in propagating brush discharge.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
