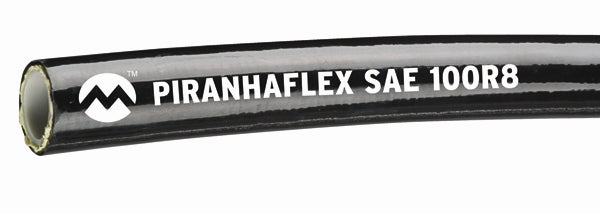

PF628-12BX Alfagomma Piranhaflex™ by Kuriyama | PF628 Series | SAE 100R8 | Thermoplastic Hydraulic Hose | Conductive | 3/4" ID | 1.050" OD | 2250 PSI | 50ft Length

PF628-12BX Alfagomma Piranhaflex™ by Kuriyama | PF628 Series | SAE 100R8 | Thermoplastic Hydraulic Hose | Conductive | 3/4" ID | 1.050" OD | 2250 PSI | 50ft Length

Save $145.87 Save $145.87
$510.54
$510.54 - $510.54
$510.54
$364.67
$364.67 - $364.67
$364.67

Kuriyama of America Inc.
Alfagomma Piranhaflex | PF628 Series | SAE 100R8 | Conductive Thermoplastic Hydraulic Hose

Made in the USA.

Suitable for High pressure hydraulic applications such as industrial equipment and vehicles (construction, agriculture, material handling) in applications down to -65°F.


Package Quantity: 50 Feet

Specifications for Variant SKU: PF628-12BX Kuriyama | 50 |
Brand: Alfagomma, Piranhaflex
Series: PF628 Series
Hose Color(s): Black
Dash Size: -12
Internal Diameter: 0.75in
Outer Diameter: 1.050in
Tubing Construction: Polyester
Cover Construction: Polyurethane
Applicable Specs & Approvals: SAE 100R8, SAE J517
Special Properties: Conductive Hose Cover, Pin Pricked Hose Cover
Compatible with the following Series: P Series
Application: High pressure hydraulic applications.
Industrial equipment and vehicles (construction, agriculture, material handling, etc.).
Aerial equipment (PF628NC only).
Hydraulic oil and lubrication lines.
Hydraulic tools.		 SAE Rating: SAE 100R8
Other Ratings: REACH (Non-Conductive ONLY)
SAE J517
ANSI 92.2 (3/16" - 1/2", For vehicle mounted aerial devices)		 Tube: Copolyester
Reinforcement: Braided aramid fibers Cover: Pin pricked, abrasion resistant polyurethane, in conductive black (PF628), or non-conductive orange (PF628NC) versions.
Service Temperature Range: -65°F (-54°C) to +200°F (+93°C) for petroleum based hydraulic fluids
*Maximum 140°F (+60°C) for water and phosphate-ester based hydraulic fluids
Other Features:
  • Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces.
  • Lightweight - Approximately 37% lighter weight than similar rubber hoses.
  • Pin Pricked Cover (PF628 Series Only) - Allows for the escape of gasses, if necessary, eliminating risk of cover blistering.
  • Low Temperature Flex - Designed to flex at temperatures as low as -65°F; well suited for cold storage applications.
  • NOTE: Boxed 250' reels or boxed 50' coils. Maximum two pieces per 250' reel, minimum 50' piece length.
PF628 Series | Conductive
Part Number
250ft Reel		 Part Number
50ft Box		 ID OD Max. Working
Pressure		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
PF628-04-250R PF628-04BX 1/4" 6.5mm 0.485" 12.3mm 5000 PSI 2.00" 50mm 0.07 lbs/ft
PF628-06-250R PF628-06BX 3/8" 9.7mm 0.630" 16.0mm 4000 PSI 2.50" 64mm 0.10 lbs/ft
PF628-08-250R PF628-08BX 1/2" 12.9mm 0.820" 20.8mm 3500 PSI 3.50" 89mm 0.17 lbs/ft
PF628-12-250R PF628-12BX 3/4" 19.1mm 1.050" 26.7mm 2250 PSI 4.50" 114mm 0.20 lbs/ft
PF628NC Series | Non-Conductive
Part Number
250ft Reel		 Part Number
50ft Box		 ID OD Max. Working
Pressure		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
PF628NC-04-250R PF628NC-04BX 1/4" 6.5mm 0.485" 12.3mm 5000 PSI 2.00" 50mm 0.07 lbs/ft
PF628NC-06-250R PF628NC-06BX 3/8" 9.7mm 0.630" 16.0mm 4000 PSI 2.50" 64mm 0.10 lbs/ft
PF628NC-08-250R PF628NC-08BX 1/2" 12.9mm 0.820" 20.8mm 3500 PSI 3.50" 89mm 0.17 lbs/ft
PF628NC-12-250R PF628NC-12BX 3/4" 19.1mm 1.050" 26.7mm 2250 PSI 4.50" 114mm 0.20 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
