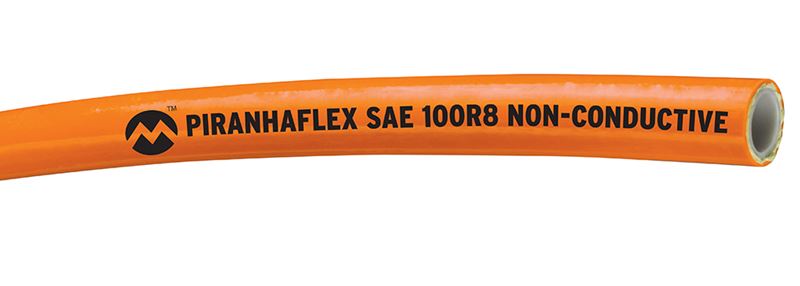

PF628NC-12BX Alfagomma Piranhaflex™ by Kuriyama | PF628NC Series | SAE 100R8 | Thermoplastic Hydraulic Hose | Non-Conductive | 3/4" ID | 1.050" OD | 2250 PSI | 50ft Length

Save $151.93

$531.76

$531.76 - $531.76

$531.76

$379.83

$379.83 - $379.83

$379.83

Kuriyama of America Inc.
Alfagomma Piranhaflex | PF628NC Series | SAE 100R8 | Non-Conductive Thermoplastic Hydraulic Hose

Made in the USA.

Suitable for High pressure hydraulic applications such as industrial equipment and vehicles (construction, agriculture, material handling) in applications down to -65°F.

Package Quantity: 50 Feet

Specifications for Variant SKU: PF628NC-12BX Kuriyama \| 50 \|
Brand:	Alfagomma, Piranhaflex
Series:	PF628NC Series
Hose Color(s):	Orange
Dash Size:	-12
Internal Diameter:	0.75in
Outer Diameter:	1.050in
Tubing Construction:	Polyester
Cover Construction:	Polyurethane
Applicable Specs & Approvals:	SAE 100R8, SAE J517, REACH Compliant
Compatible with the following Series:	P Series

Other Features:
Application:	High pressure hydraulic applications. Industrial equipment and vehicles (construction, agriculture, material handling, etc.). Aerial equipment (PF628NC only). Hydraulic oil and lubrication lines. Hydraulic tools.	SAE Rating:	SAE 100R8
Other Ratings:	REACH (Non-Conductive ONLY) SAE J517 ANSI 92.2 (3/16" - 1/2", For vehicle mounted aerial devices)	Tube:	Copolyester
Reinforcement:	Braided aramid fibers	Cover:	Pin pricked, abrasion resistant polyurethane, in conductive black (PF628), or non-conductive orange (PF628NC) versions.
Service Temperature Range:	-65°F (-54°C) to +200°F (+93°C) for petroleum based hydraulic fluids *Maximum 140°F (+60°C) for water and phosphate-ester based hydraulic fluids
Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces. Lightweight - Approximately 37% lighter weight than similar rubber hoses. Pin Pricked Cover (PF628 Series Only) - Allows for the escape of gasses, if necessary, eliminating risk of cover blistering. Low Temperature Flex - Designed to flex at temperatures as low as -65°F; well suited for cold storage applications. NOTE: Boxed 250' reels or boxed 50' coils. Maximum two pieces per 250' reel, minimum 50' piece length.

PF628 Series \| Conductive
Part Number 250ft Reel	Part Number 50ft Box	ID		OD		Max. Working Pressure	Min Bend Radius		Weight
Part Number 250ft Reel	Part Number 50ft Box	(in.)	(mm)	(in.)	(mm)	PSI	(in.)	(mm)	(lbs./ft.)
PF628-04-250R	PF628-04BX	1/4"	6.5mm	0.485"	12.3mm	5000 PSI	2.00"	50mm	0.07 lbs/ft
PF628-06-250R	PF628-06BX	3/8"	9.7mm	0.630"	16.0mm	4000 PSI	2.50"	64mm	0.10 lbs/ft
PF628-08-250R	PF628-08BX	1/2"	12.9mm	0.820"	20.8mm	3500 PSI	3.50"	89mm	0.17 lbs/ft
PF628-12-250R	PF628-12BX	3/4"	19.1mm	1.050"	26.7mm	2250 PSI	4.50"	114mm	0.20 lbs/ft

PF628NC Series \| Non-Conductive
Part Number 250ft Reel	Part Number 50ft Box	ID		OD		Max. Working Pressure	Min Bend Radius		Weight
Part Number 250ft Reel	Part Number 50ft Box	(in.)	(mm)	(in.)	(mm)	PSI	(in.)	(mm)	(lbs./ft.)
PF628NC-04-250R	PF628NC-04BX	1/4"	6.5mm	0.485"	12.3mm	5000 PSI	2.00"	50mm	0.07 lbs/ft
PF628NC-06-250R	PF628NC-06BX	3/8"	9.7mm	0.630"	16.0mm	4000 PSI	2.50"	64mm	0.10 lbs/ft
PF628NC-08-250R	PF628NC-08BX	1/2"	12.9mm	0.820"	20.8mm	3500 PSI	3.50"	89mm	0.17 lbs/ft
PF628NC-12-250R	PF628NC-12BX	3/4"	19.1mm	1.050"	26.7mm	2250 PSI	4.50"	114mm	0.20 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
