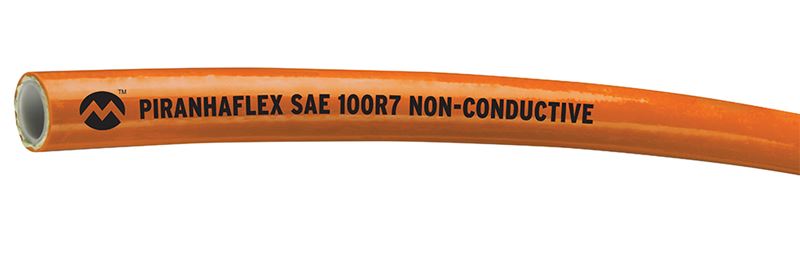

PFP354NC-08-250R Alfagomma Piranhaflex™ by Kuriyama | PFP354NC Series | SAE 100R7 | Thermoplastic Hydraulic Hose + Slither® Cover | Non-Conductive | 1/2" ID | 0.834" OD | 2000 PSI | 250ft Length

Save $69.98

$629.85

$629.85 - $629.85

$629.85

$559.87

$559.87 - $559.87

$559.87

Kuriyama of America Inc.
Alfagomma Piranhaflex | PFP354NC Series | SAE 100R7 | Non-Conductive Thermoplastic Hydraulic Hose + Slither® Cover

Made in the USA.

Suitable for industrial equipment and vehicles (construction, agriculture, material handling) in applications down to -65°F.

Package Quantity: 250 Feet

Quantity

Specifications for Variant SKU: PFP354NC-08-250R Kuriyama \| 250 \|
Brand:	Alfagomma, Piranhaflex
Series:	PFP354NC Series
Hose Color(s):	Orange
Dash Size:	-08
Internal Diameter:	0.50in
Outer Diameter:	0.834in
Tubing Construction:	Nylon
Cover Construction:	Polyurethane
Applicable Specs & Approvals:	SAE 100R7, SAE J517, REACH Compliant
Compatible with the following Series:	P Series \| A Series

Other Features:
Application:	Industrial equipment and vehicles (construction, agriculture, material handling, etc.). Aerial equipment (PFP354NC only). Hydraulic oil and lubrication lines.	SAE Rating:	SAE 100R7
Other Ratings:	REACH (Non-Conductive ONLY), SAE J517	Tube:	Nylon

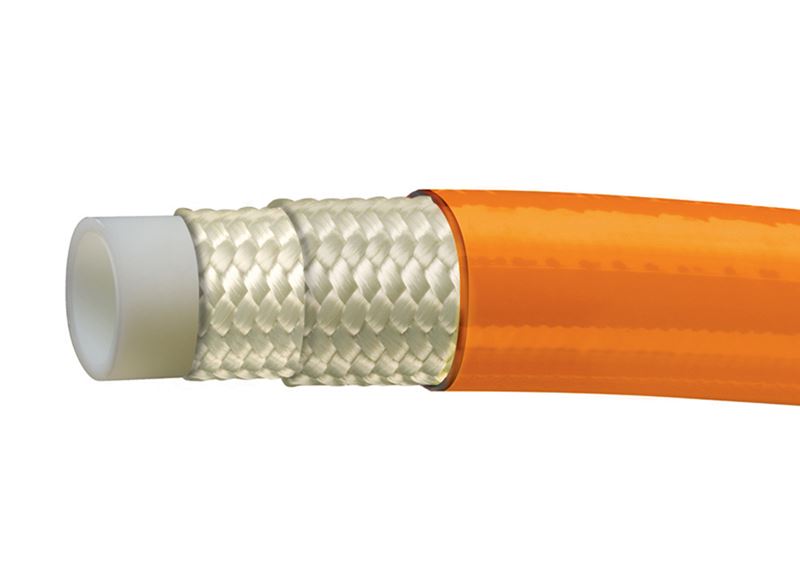

Reinforcement:	Braided high tensile strength fibers	Cover:	Pin pricked, abrasion resistant polyurethane with Slither® additive. Available with conductive black cover (PFP354), or nonconductive "NC", orange cover (PFP354NC series).
Service Temperature Range:	-65°F (-54°C) to +200°F (+93°C) for petroleum based hydraulic fluids
Slither® Cover - Slick, Slither cover helps hose slide through tight spaces such as sheaves, pulleys and bundles. Especially helpful routing through long lengths of hose bundles on aerial equipment such as scissor lifts and bucket trucks. Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces. Lightweight - Approximately 37% lighter weight than similar rubber hoses. Low Temperature Flex - Designed to flex at temperatures as low as -65°F; well suited for cold storage applications. Pin Pricked Cover (PFP354 Series Only) - Allows for the escape of gasses, if necessary, eliminating risk of cover blistering. NOTE: Boxed 250' reels or boxed 50' coils. Maximum two pieces per 250' reel, minimum 50' piece length.

PFP354 Series \| Conductive
Part Number 250ft Reel	ID		OD		Max. Working Pressure	Min Bend Radius		Weight
Part Number 250ft Reel	(in.)	(mm)	(in.)	(mm)	PSI	(in.)	(mm)	(lbs./ft.)
PFP354-04-250R	1/4"	6.4mm	0.496"	12.6mm	2750 PSI	1.50"	38mm	0.06 lbs/ft
PFP354-06-250R	3/8"	9.7mm	0.650"	16.5mm	2250 PSI	2.00"	51mm	0.11 lbs/ft
PFP354-08-250R	1/2"	13.1mm	0.834"	21.2mm	2000 PSI	3.00"	76mm	0.16 lbs/ft

PFP354NC Series \| Non-Conductive
Part Number 250ft Reel	ID		OD		Max. Working Pressure	Min Bend Radius		Weight
Part Number 250ft Reel	(in.)	(mm)	(in.)	(mm)	PSI	(in.)	(mm)	(lbs./ft.)
PFP354NC-04-250R	1/4"	6.4mm	0.496"	12.6mm	2750 PSI	1.50"	38mm	0.06 lbs/ft
PFP354NC-06-250R	3/8"	9.7mm	0.650"	16.5mm	2250 PSI	2.00"	51mm	0.11 lbs/ft
PFP354NC-08-250R	1/2"	13.1mm	0.834"	21.2mm	2000 PSI	3.00"	76mm	0.16 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
