PFR3-04 Alfagomma Piranhaflex™ by Kuriyama | PFR3 Series | Two-Piece Non-Skive Ferrule | -04 Hose Dash Size | 1/4" Hose ID | Steel

Save $0.82

$2.87

$2.87 - $2.87

$2.87

$2.05

$2.05 - $2.05

$2.05

Kuriyama of America Inc.

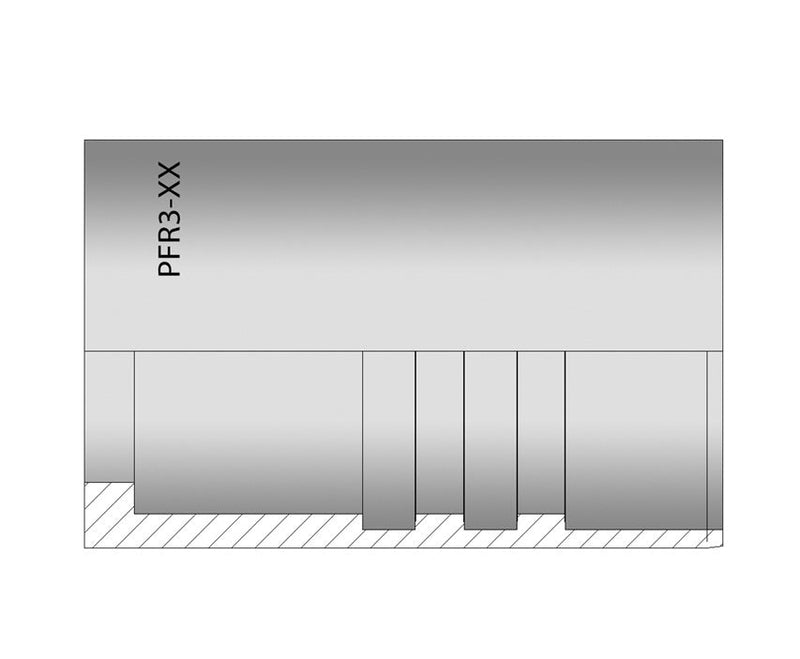

Alfagomma Piranhaflex™ | PFR3 Series | Two-Piece Non-Skive Ferrule

Specifications for Variant SKU: PFR3-04 Kuriyama
Brand:	Alfagomma, Piranhaflex
Series:	PFR3 Series
Material(s):	Steel
Compatible with the following Series:	PF151R3 Series \| PF415CP Series

About PFR3-Series Ferrules:
Two piece non-skive ferrule for use with: "A" insert on all PiranhaFlex™ hydraulic hoses, R7, R8 and R18 styles.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Dash Size	Hose ID Size		B OD	L Length	Weight
Steel Part Number	Dash Size	(in.)	(mm)	(mm)	(mm)	lbs/each
PFR3-04	04	1/4"	6.4mm	14.75mm	28.9mm	0.03 lbs
PFR3-05	05	5/16"	7.9mm	17.4mm	28.8mm	0.04 lbs
PFR3-06	06	3/8"	9.5mm	19.0mm	28.8mm	0.04 lbs
PFR3-08	08	1/2"	12.7mm	23.7mm	36.3mm	0.06 lbs
