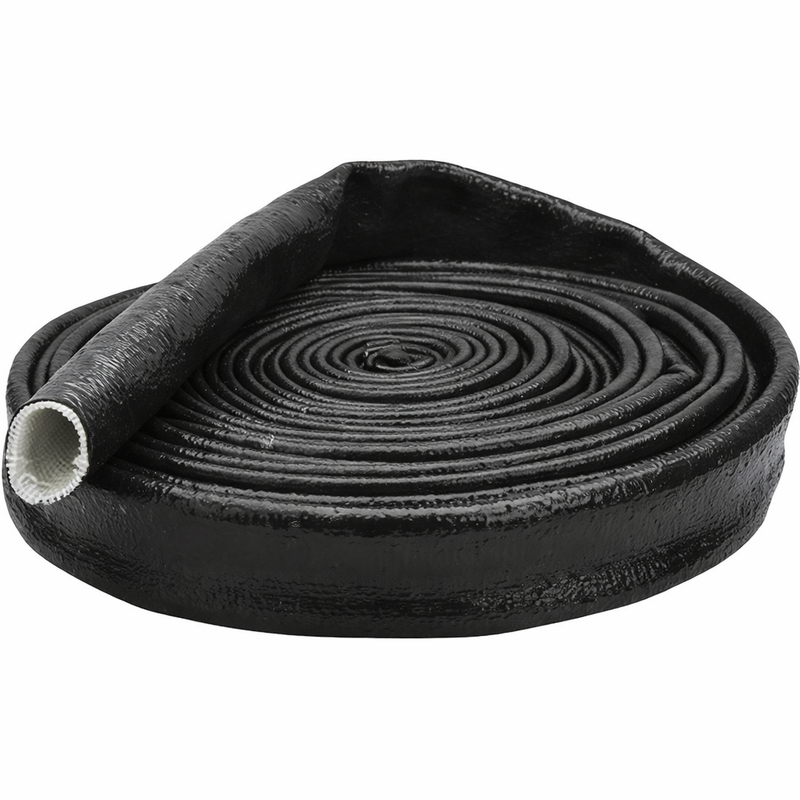

PJI-16-BLK by Insulflex | Pyrojacket Sleeve | 1" ID | Black

PJI-16-BLK by Insulflex | Pyrojacket Sleeve | 1" ID | Black

Minimum Order Quantity: 5 Feet

Save $2.21 Save $2.21
$5.53
$5.53 - $5.53
$5.53
$3.32
$3.32 - $3.32
$3.32

ADL Insulflex
Black Fire Sleeve

Sold by the foot. Actual length may vary by ±10%. Underages are refunded; overages ship at no additional charge. Product may arrive in multiple pieces, especially for longer orders.
Specifications for Variant SKU: PJI-16-BLK Insulflex
Brand: Pyrojacket
Hose Color(s): Black
Internal Diameter: 1in
Tubing Construction: Braided Fiberglass
Cover Construction: Silicone
Special Properties: High Temperature
Sheds Splash Immediately
  • Industrial Grade Pyrojacket® withstands repeated exposure to molten steel, molten aluminum, and molten glass up to 3000°F (1650°C).
  • Heavy coating of proprietary iron oxide red silicone rubber sheds molten metal splash immediately, minimizing heat transfer.
Withstands Intense Radiant Heat and Flame
  • Withstands continuous exposure to 500°F (260°C).
  • Handles intermittent exposure up to 2000°F (1090°C) for 15–20 minutes.
  • Resists short-term exposure up to 3000°F (1650°C) for 15–20 seconds.
  • When exposed to flame, the silicone rubber transforms into a protective SiO2 refractory crust.
  • All temperature ratings are DMT certified.
Construction
  • Constructed from a high-bulk knitted fiberglass sleeve.
  • Silicone rubber outer coating provides durability, abrasion resistance, and thermal protection.
  • Excellent modulus of elasticity makes it ideal for bundling hoses, tubes, and cables.
Personnel Protection and Energy Efficiency
  • Provides effective protection against burns from hot hoses and flexible steam lines.
  • Helps reduce heat energy loss while improving workplace safety.
Part I.D. (in) I.D. (mm)
PJI-04-BLK 1/4" 6mm
PJI-06-BLK 3/8" 10mm
PJI-08-BLK 1/2" 13mm
PJI-10-BLK 5/8" 16mm
PJI-12-BLK 3/4" 19mm
PJI-16-BLK 1" 25mm
ADL Insulflex

ADL Insulflex

Founded in 1962, ADL Insulflex has become an industry leader in high-temperature protection solutions. As the original manufacturer of Pyrojacket® and other advanced high-temperature materials, Insulflex is equipped to deliver reliable solutions worldwide.
