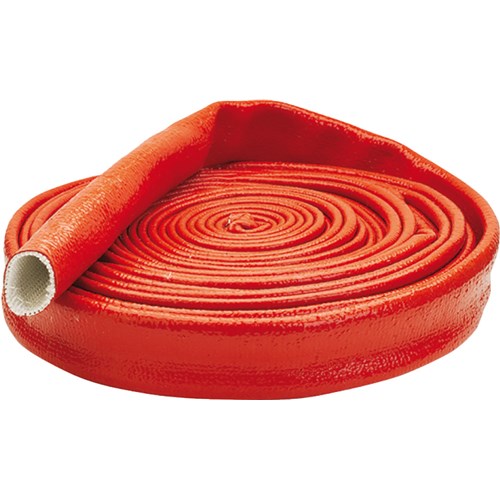

PJI-16-IOR by Insulflex | Pyrojacket Sleeve | 1" ID | Iron Oxide Red

PJI-16-IOR by Insulflex | Pyrojacket Sleeve | 1" ID | Iron Oxide Red

Minimum Order Quantity: 5 Feet

Save $0.39 Save $0.39
$3.49
$3.49 - $3.49
$3.49
$3.10
$3.10 - $3.10
$3.10

ADL Insulflex
Iron Oxide Red Fire Sleeve

Sold by the foot. Actual length may vary by ±10%. Underages are refunded; overages ship at no additional charge. Product may arrive in multiple pieces, especially for longer orders.
Specifications for Variant SKU: PJI-16-IOR Insulflex
Brand: Pyrojacket
Hose Color(s): Red
Internal Diameter: 1in
Tubing Construction: Braided Fiberglass
Cover Construction: Silicone
Special Properties: High Temperature
Sheds Splash Immediately
  • Industrial Grade Pyrojacket® withstands repeated exposure to molten steel, molten aluminum, and molten glass up to 3000°F (1650°C).
  • Heavy coating of proprietary iron oxide red silicone rubber sheds molten metal splash immediately, minimizing heat transfer.
Withstands Intense Radiant Heat and Flame
  • Withstands continuous exposure to 500°F (260°C).
  • Handles intermittent exposure up to 2000°F (1090°C) for 15–20 minutes.
  • Resists short-term exposure up to 3000°F (1650°C) for 15–20 seconds.
  • When exposed to flame, the silicone rubber transforms into a protective SiO2 refractory crust.
  • All temperature ratings are DMT certified.
Construction
  • Constructed from a high-bulk knitted fiberglass sleeve.
  • Silicone rubber outer coating provides durability, abrasion resistance, and thermal protection.
  • Excellent modulus of elasticity makes it ideal for bundling hoses, tubes, and cables.
Personnel Protection and Energy Efficiency
  • Provides effective protection against burns from hot hoses and flexible steam lines.
  • Helps reduce heat energy loss while improving workplace safety.
Part Number I.D. (in) I.D. (mm)
PJI-04-IOR 1/4" 6mm
PJI-06-IOR 3/8" 10mm
PJI-08-IOR 1/2" 13mm
PJI-10-IOR 5/8" 16mm
PJI-12-IOR 3/4" 19mm
PJI-14-IOR 7/8" 22mm
PJI-16-IOR 1" 25mm
PJI-18-IOR 1-1/8" 29mm
PJI-20-IOR 1-1/4" 32mm
PJI-22-IOR 1-3/8" 35mm
PJI-24-IOR 1-1/2" 38mm
PJI-26-IOR 1-5/8" 41mm
PJI-28-IOR 1-3/4" 44mm
PJI-32-IOR 2" 51mm
PJI-36-IOR 2-1/4" 57mm
PJI-40-IOR 2-1/2" 64mm
PJI-44-IOR 2-3/4" 70mm
PJI-48-IOR 3" 76mm
PJI-52-IOR 3-1/4" 83mm
PJI-56-IOR 3-1/2" 89mm
PJI-60-IOR 3-3/4" 95mm
PJI-64-IOR 4" 102mm
PJI-72-IOR 4-1/2" 114mm
PJI-80-IOR 5" 127mm
ADL Insulflex

ADL Insulflex

Founded in 1962, ADL Insulflex has become an industry leader in high-temperature protection solutions. As the original manufacturer of Pyrojacket® and other advanced high-temperature materials, Insulflex is equipped to deliver reliable solutions worldwide.
