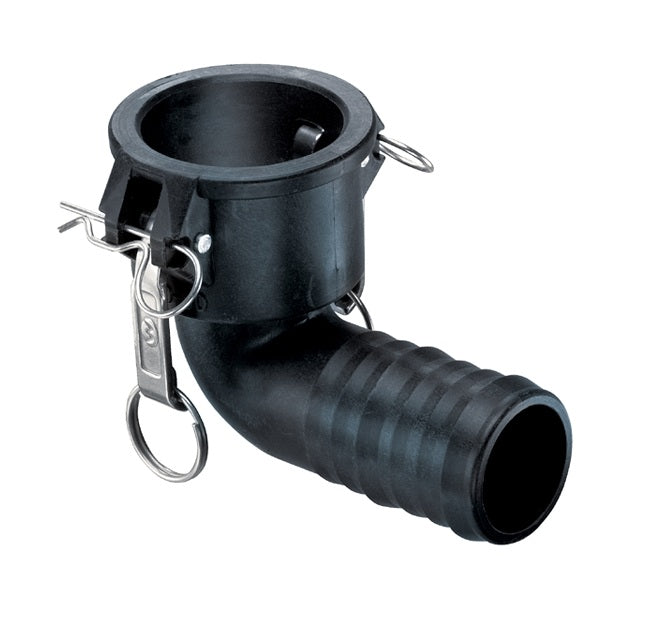

PP150C90 by Kuriyama | PPC90 Series | Part C | 90° Elbow | Cam & Groove Fitting | 1-1/2" Coupler x 1-1/2" Hose Barb | Polypropylene

Save $7.87

$22.22

$22.22 - $22.22

$22.22

$14.35

$14.35 - $14.35

$14.35

Kuriyama Camlock Couplings are intended for use in many industrial applications.

Cost-effective, high-performance alternative to metal fittings in industrial and agricultural markets.

Specifications for Variant SKU: PP150C90 Kuriyama
Series:	PPC90 Series
Shape (Orientation):	90 Degree
Cam Type:	Type C
Ends Configuration:	1/2in Female Cam & Groove, 1/2in Hose Barb
Material(s):	Polypropylene
Seal Material(s):	EPDM

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial and agricultural applications.
Polypropylene is a cost-effective, high-performance alternative to metal options. Despite lacking the strength of stainless steel or aluminum.
Offers excellent corrosion resistance and impressive durability.

What are the Features?

Polypropylene material is glass filled for added strength and durability.
Extremely lightweight yet strong.
Precision molded to ensure consistency in form and function.
Economical when compared with other materials.

What are the Materials?

Glass filled polypropylene.
Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
Locking feature using safety clips to prevent disconnection during use.
Supplied 304 stainless steel handles, handle pins, pull rings, and safety clips.
EPDM gasket included.

Part Number	Female Coupler Size (in)	PSI Rating at 70°F	Weight Each (lbs)
PP150C90	1-1/2"	100 PSI	0.56 lbs
PP200C90	2"	100 PSI	0.73 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
