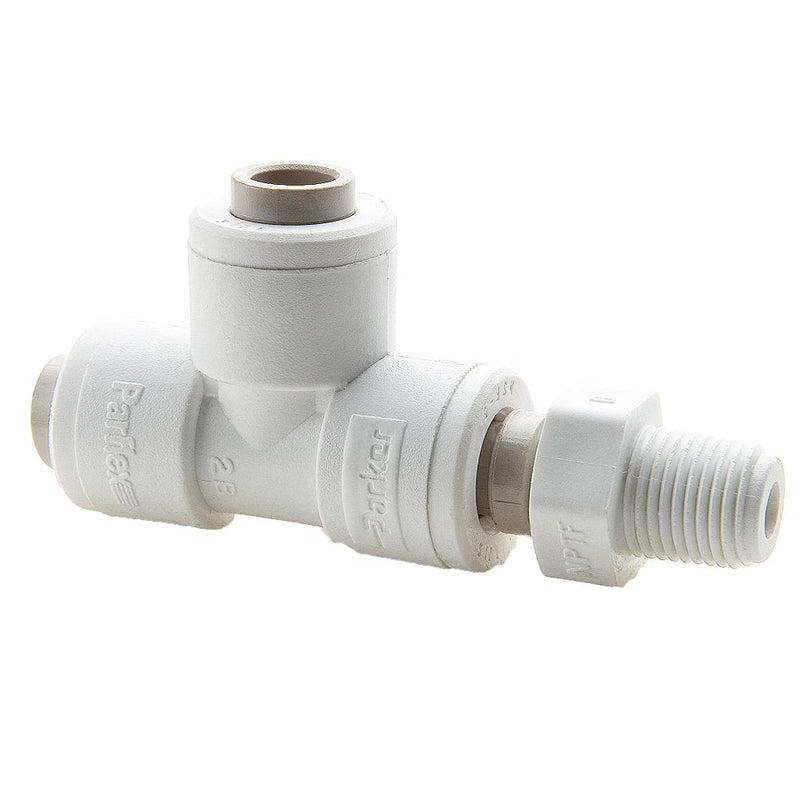

PP4MRS2 by Parker | TrueSeal™ Threaded Fittings | 1/4" Swivel Tube OD x 1/8" Male NPTF Thread | 2.36" Length | Tee | White | Polypropylene

PP4MRS2 by Parker | TrueSeal™ Threaded Fittings | 1/4" Swivel Tube OD x 1/8" Male NPTF Thread | 2.36" Length | Tee | White | Polypropylene

Save $0.35 Save $0.35
$4.55
$4.55 - $4.55
$4.55
$4.20
$4.20 - $4.20
$4.20

by Parker Hannifin
TrueSeal™ Fittings:MRS - Male Run Tee Swivel
Specifications for Variant SKU: PP4MRS2 Parker
Brand: TrueSeal™
Series: MRS Series
Shape (Orientation): Tee
Material(s): Polypropylene
Seal Material(s): EPDM
Special Properties: Food Grade, Swivel, Filtration
Product Features:
  • Acetal and Black Polypropylene (EPDM seals and metal gripping collet standard
  • White Polypropylene (EPDM seals and plastic gripping collet standard
  • Black Kynar (Fluorocarbon (FKM) seals and black kynar metal gripping collet standard
  • Gripping ring with stainless steel bite edge or with an engineered thermoplastic bite edge
  • FDA compliant, NSF/ANSI 51
  • Gray acetal and Black Polypropylene NSF/ANSI/CAN 61
Markets:
  • Food
  • Potable Water
  • Chemical
  • Filtration
Applications:
  • Air
  • Water
  • Soft Drinks
  • Beer
  • Wine
  • Dyes
  • Vacuum
Pressure Range: Acetal and Kynar:
  • 1/4", 5/16", 3/8" Vacuum to 300 PSI (20.7 bar) 1/2" Vacuum to 250 PSI (17.2 bar)
    • Polypropylene:
  • 1/4", 3/8", 1/2" Vacuum to 150 PSI (10.3 bar)
Temperature Range:
Acetal:
  • -20° to +180° F (-28.9° to +82.2° C)
    		•
    Polypropylene:
  • 0° to +225° F (-17.8° to +107.2° C)
    		•  Kynar:
  • 0° to +275° F (-17.8° to +135° C)
    		•
    Compatible Tubing:
    • Polyethylene
    • Polypropylene**
    • Nylon**
    • Vinyl+
    • Fluoropolymer**
    • Polyurethane+
    • *Kynar®

    * Registered trademark of The Arkema Group.
    ** Metal gripper required (-MG & -HBLK suffix).
    + Tube Support required.

    Gray Acetal EPDM Seal Black PPL EPDM Seal White PPL EPDM Seal Black Kynar FKM Seal Nom. Tube O.D. NPTF Thread Size Hex (C) L M N Thru Hole Min. (D)
    A4MRS2-MG - PP4MRS2 FB4MRS2-HBLK 1/4" 1/8" 9/16" 1.55" .81" .85" .175"
    A4MRS4-MG PPB4MRS4-MG PP4MRS4 FB4MRS4-HBLK 1/4" 1/4" 11/16" 1.67" .81" .85" .175"
    A5MRS2-MG - - - 5/16" 1/8" 9/16" 1.78" 1.02" 1.02" .188"
    A5MRS4-MG - - - 5/16" 1/4" 11/16" 1.90" 1.02" 1.02" .188"
    A5MRS6-MG - - - 5/16" 3/8" 13/16" 1.90" 1.02" 1.02" .188"
    A6MRS4-MG PPB6MRS4-MG PP6MRS4 FB6MRS4-HBLK 3/8" 1/4" 13/16" 1.90" 1.02" 1.02" .250"
    A6MRS6-MG PPB6MRS6-MG PP6MRS6 FB6MRS6-HBLK 3/8" 3/8" 13/16" 1.90" 1.02" 1.02" .250"
    A8MRS4-MG - - - 1/2" 1/4" 13/16" 2.10" 1.20" 1.20" .240"
    A8MRS6-MG - PP8MRS6 - 1/2" 3/8" 13/16" 2.10" 1.20" 1.20" .375"
    A8MRS8-MG - PP8MRS8 - 1/2" 1/2" 1" 2.32" 1.20" 1.20" .375"
    Parker Fluid System Connectors Division

    Parker Fluid System Connectors Division

    Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
