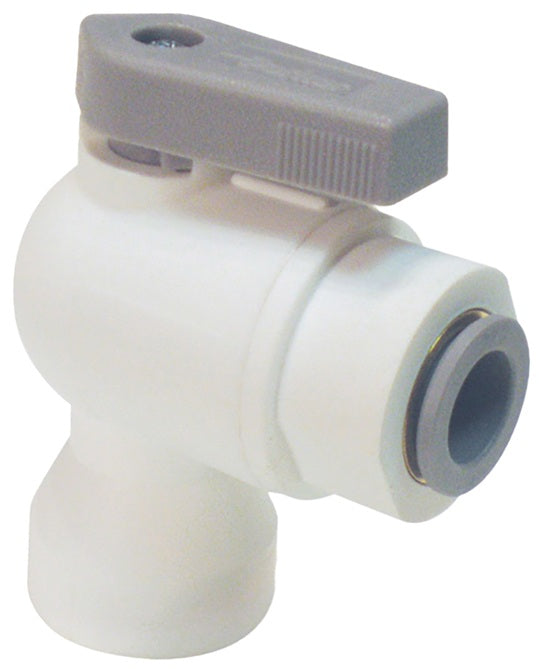

PP6VFE6-MG by Dixon Valve | TrueSeal™ Ball Valve | Female 90° Elbow | 3/8" Female NPTF x 3/8" Tube OD | Polypropylene

PP6VFE6-MG by Dixon Valve | TrueSeal™ Ball Valve | Female 90° Elbow | 3/8" Female NPTF x 3/8" Tube OD | Polypropylene

Save $0.97 Save $0.97
$10.26
$10.26 - $10.26
$10.26
$9.29
$9.29 - $9.29
$9.29

Dixon Valve
TrueSeal™ Ball Valve | 90° Elbow | Female NPTF x Tube End

These corrosion-resistant, all-plastic designed ball valves are ideal for water filtration units, coffee and beverage machines, and a wide variety of other fluid applications.
Specifications for Variant SKU: PP6VFE6-MG Dixon
Brand: TrueSeal
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Push-to-Connect, 3/8in Female NPTF
Material(s): Polypropylene
Seal Material(s): EPDM
Features:
  • Special O-ring seal ensures a reliable leak-tight connection.
  • Full flow design reduces pressure drop across the valve.
  • Bi-directional flow maximizes productivity.
  • Precision molded, all-plastic design is leak free and corrosion resistant.
Material:
  • Glass-reinforced Polypropylene body
  • O-ring seal material: EPDM
  • High-temperature, scale resistant Polysulfone ball.
  • EPDM seal secures connection with larger surface area than standard O-rings.
Approvals:
  • FDA compliant
  • NSF/ANSI-51 listed for contact with food
  • Certified to NSF/ANSI-61
Specifications:
  • Temperature range: 35°F to 200°F (2°C to 93°C)
  • Maximum operating pressure: 150 PSI
  • Actual working pressures will be lower at elevated temperatures
Part Number Tube O.D. Female NPTF
PP4VFE4-MG 1/4" 1/4"
PP4VFE6-MG 1/4" 3/8"
PP6VFE4-MG 3/8" 1/4"
PP6VFE6-MG 3/8" 3/8"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
