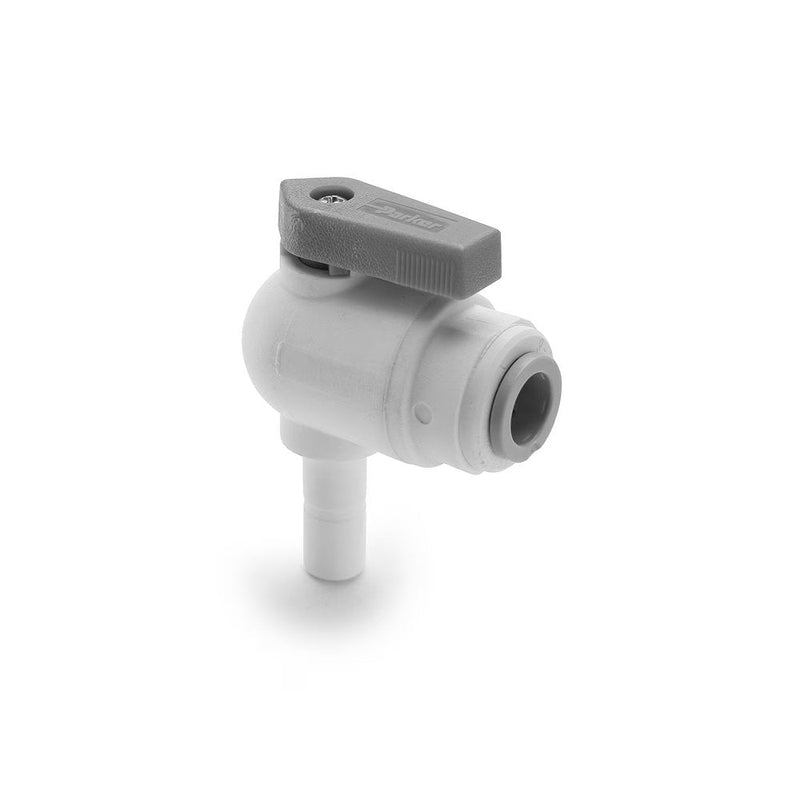

PP6VTEU6-MG by Parker | TrueSeal™ Ball Valve | 3/8" Push-to-Connect x 3/8" Stem | 2.43" Length | 90° Elbow | White | Polypropylene

PP6VTEU6-MG by Parker | TrueSeal™ Ball Valve | 3/8" Push-to-Connect x 3/8" Stem | 2.43" Length | 90° Elbow | White | Polypropylene

Save $6.01 Save $6.01
$15.02
$15.02 - $15.02
$15.02
$9.01
$9.01 - $9.01
$9.01

by Parker Hannifin
Ball Valves Polypropylene:Valve Tube Elbow Union
Specifications for Variant SKU: PP6VTEU6-MG Parker
Brand: TrueSeal™
Series: VTEU Series
Shape (Orientation): 90° Elbow
Material(s): Polypropylene
Seal Material(s): EPDM
Special Properties: Food Grade, Corrosion Resistance, Filtration, Valved
Product Features:
  • Wide chemical acceptance range
  • Bi-directional flow maximizes productivity
  • Full flow reduces pressure drop across valve
  • EPDM Seals – LIQUIfit, TrueSeal, and Par-barb
  • Nitrile Seals – Fast and Tite
  • Push-in and barbed connections
  • Meets FDA and NSF/ANSI 51 requirements for food contact
  • LIQUIfit, Par-Barb, and TrueSeal meet NSF/ANSI 61 requirements
Advantages:
  • Reduce costs – Built in LIQUIfit, TrueSeal and Par-Barb connections eliminates the need for a secondary fitting.
  • Save Space – Low-profile design allows for easy assembly and access where space is a concern.
Type:
  • LFPP – LIQUIfit
  • PP – TrueSeal
  • PBPP – Par-Barb
  • FTPPB - Fast and Tite
Specification:
Temperature Range: 35° to +200° F (+1.7° to +93.3° C)
Pressure Range:
  • Up to 150 PSI (10.3 bar)
Part Number Nom. Tube OD Stem A B C D ØE Thru Hole Min
PP4VTEU6-MG 1/4" 3/8" 1.75" 1.22" 2.43" 1.50" .17"
PP6VTEU6-MG 3/8" 3/8" 1.83" 1.30" 2.43" 1.50" .25"
