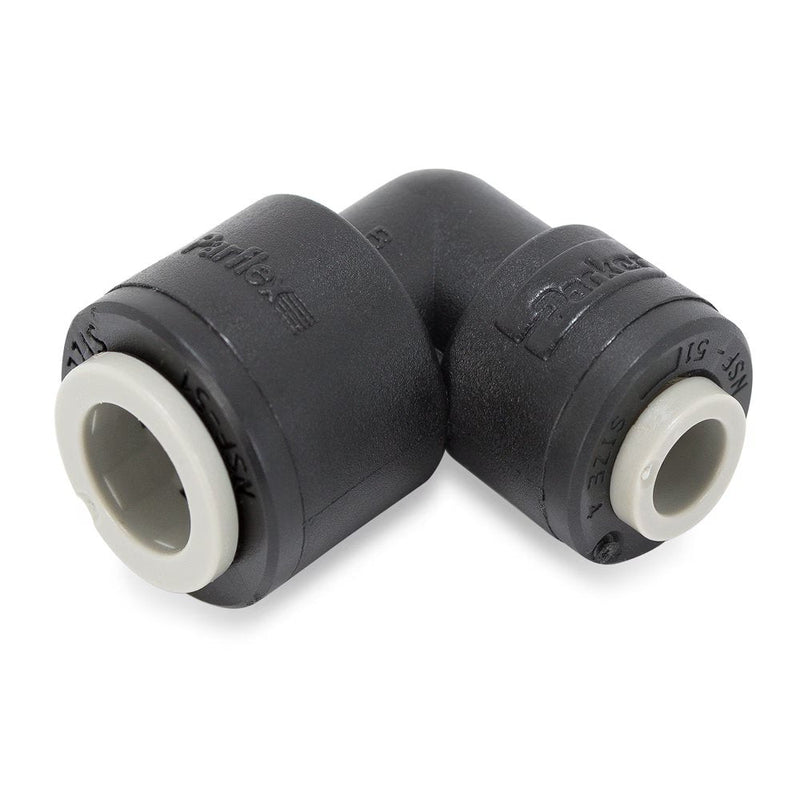

PPB6EU6-MG by Parker | TrueSeal™ Tube to Tube Fittings | 3/8" Union Tube O.D. | Black | 90° Elbow | Polypropylene

PPB6EU6-MG by Parker | TrueSeal™ Tube to Tube Fittings | 3/8" Union Tube O.D. | Black | 90° Elbow | Polypropylene

Save $0.20 Save $0.20
$2.73
$2.73 - $2.73
$2.73
$2.53
$2.53 - $2.53
$2.53

by Parker Hannifin
TrueSeal™ Fittings:EU - Elbow Union
Specifications for Variant SKU: PPB6EU6-MG Parker
Brand: TrueSeal™
Series: EU Series
Shape (Orientation): 90° Elbow
Material(s): Polypropylene
Seal Material(s): EPDM
Special Properties: Food Grade, Filtration
Product Features:
  • Acetal and Black Polypropylene (EPDM seals and metal gripping collet standard
  • White Polypropylene (EPDM seals and plastic gripping collet standard
  • Black Kynar (Fluorocarbon (FKM) seals and black kynar metal gripping collet standard
  • Gripping ring with stainless steel bite edge or with an engineered thermoplastic bite edge
  • FDA compliant, NSF/ANSI 51
  • Gray acetal and Black Polypropylene NSF/ANSI/CAN 61
Markets:
  • Food
  • Potable Water
  • Chemical
  • Filtration
Applications:
  • Air
  • Water
  • Soft Drinks
  • Beer
  • Wine
  • Dyes
  • Vacuum
Pressure Range: Acetal and Kynar:
  • 1/4", 5/16", 3/8" Vacuum to 300 PSI (20.7 bar) 1/2" Vacuum to 250 PSI (17.2 bar)
    • Polypropylene:
  • 1/4", 3/8", 1/2" Vacuum to 150 PSI (10.3 bar)
Temperature Range:
Acetal:
  • -20° to +180° F (-28.9° to +82.2° C)
    		•
    Polypropylene:
  • 0° to +225° F (-17.8° to +107.2° C)
    		•  Kynar:
  • 0° to +275° F (-17.8° to +135° C)
    		•
    Compatible Tubing:
    • Polyethylene
    • Polypropylene**
    • Nylon**
    • Vinyl+
    • Fluoropolymer**
    • Polyurethane+
    • *Kynar®

    * Registered trademark of The Arkema Group.
    ** Metal gripper required (-MG & -HBLK suffix).
    + Tube Support required.

    Gray Acetal EPDM Seal Black PPL EPDM Seal White PPL EPDM Seal Black Kynar FKM Seal Nom. Tube O.D. M N Flow Diameter (D)
    A4EU4-MG PPB4EU4-MG PP4EU4 FB4EU4-HBLK 1/4" .87" .87" .175"
    A5EU4-MG - - - 5/16"-1/4" 1.052" .90" .175"
    A5EU5-MG - - FB5EU5-HBLK 5/16" 1.02" 1.02" .188"
    A6EU4-MG - PP6EU4 FB6EU4-HBLK 3/8"-1/4" 1.02" .90" .212"
    A6EU5-MG - - - 3/8"-5/16" 1.02" 1.02" .175"
    A6EU6-MG PPB6EU6-MG PP6EU6 FB6EU6-HBLK 3/8" 1.02" 1.02" .250"
    A8EU6-MG PPB8EU6-MG - - 1/2"-3/8" 1.20" 1.20" .250"
    A8EU8-MG PPB8EU8-MG PP8EU8 FB8EU8-HBLK 1/2" 1.20" 1.20" .375"
