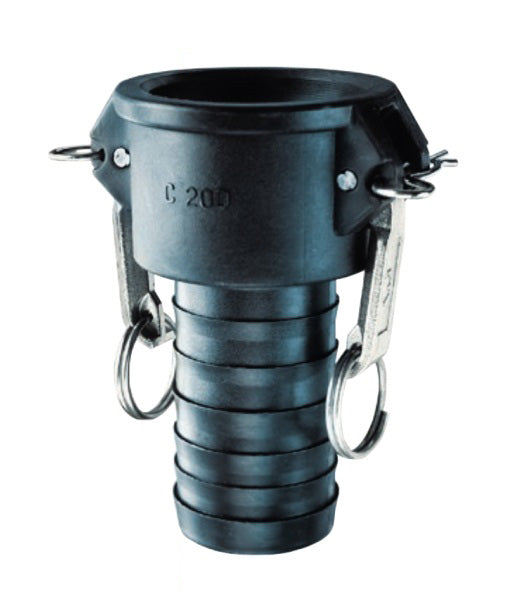

PPC125 by Kuriyama | PPC Series | Part C | Cam & Groove Fitting | 1-1/4" Coupler x 1-1/4" Hose Barb | Polypropylene

PPC125 by Kuriyama | PPC Series | Part C | Cam & Groove Fitting | 1-1/4" Coupler x 1-1/4" Hose Barb | Polypropylene

Save $6.44 Save $6.44
$15.06
$15.06 - $15.06
$15.06
$8.62
$8.62 - $8.62
$8.62

Kuriyama of America Inc.
Cam & Groove (Camlock) Fitting | PPC Series | Part C | Coupler x Hose Barb | Polypropylene

Kuriyama Camlock Couplings are intended for use in many industrial applications.

Cost-effective, high-performance alternative to metal fittings in industrial and agricultural markets.
Specifications for Variant SKU: PPC125 Kuriyama
Series: PPC Series
Shape (Orientation): Straight
Cam Type: Type C
Ends Configuration: 1-1/4in Female Cam & Groove, 1-1/4in Hose Barb
Material(s): Polypropylene
Seal Material(s): EPDM

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial and agricultural applications.
  • Polypropylene is a cost-effective, high-performance alternative to metal options. Despite lacking the strength of stainless steel or aluminum.
  • Offers excellent corrosion resistance and impressive durability.

What are the Features?

  • Polypropylene material is glass filled for added strength and durability.
  • Extremely lightweight yet strong.
  • Precision molded to ensure consistency in form and function.
  • Economical when compared with other materials.

What are the Materials?

  • Glass filled Polypropylene.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
  • Locking feature using safety clips to prevent disconnection during use.
  • Supplied 304 stainless steel handles, handle pins, pull rings, and safety clips.
  • All 4" size female couplers supplied with three handles to provide added stability.
  • EPDM gasket included.
Part Number Size
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
PPC050 1/2" 100 PSI 0.17 lbs
PPC075 3/4" 100 PSI 0.18 lbs
PPC100 1" 100 PSI 0.27 lbs
PPC125 1-1/4" 100 PSI 0.40 lbs
PPC150 1-1/2" 100 PSI 0.51 lbs
PPC200 2" 100 PSI 0.61 lbs
PPC300 3" 50 PSI 1.28 lbs
PPC400 4" 50 PSI 1.70 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
