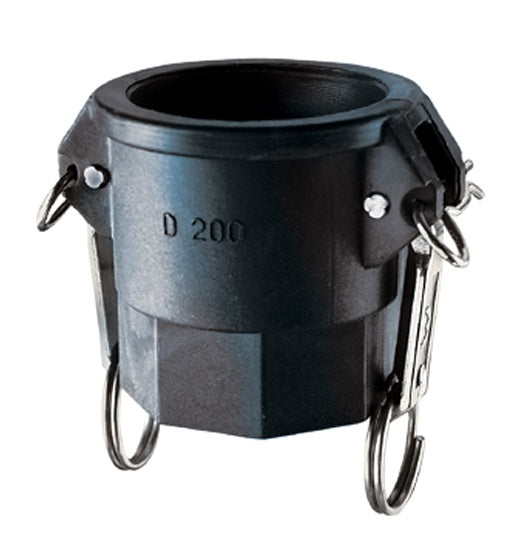

PPD200 by Kuriyama | PPD Series | Part D | Cam & Groove Adapter | 2" Coupler x 2" Female NPT | Polypropylene

PPD200 by Kuriyama | PPD Series | Part D | Cam & Groove Adapter | 2" Coupler x 2" Female NPT | Polypropylene

Save $7.30 Save $7.30
$18.96
$18.96 - $18.96
$18.96
$11.66
$11.66 - $11.66
$11.66

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | PPD Series | Part D | Coupler x Female NPT | Polypropylene

Kuriyama Camlock Couplings are intended for use in many industrial applications.

Cost-effective, high-performance alternative to metal fittings in industrial and agricultural markets.
Specifications for Variant SKU: PPD200 Kuriyama
Series: PPD Series
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 2in Female Cam & Groove, 2in Female NPT
Material(s): Polypropylene
Seal Material(s): EPDM

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial and agricultural applications.
  • Polypropylene is a cost-effective, high-performance alternative to metal options. Despite lacking the strength of stainless steel or aluminum.
  • Offers excellent corrosion resistance and impressive durability.

What are the Features?

  • Polypropylene material is glass filled for added strength and durability.
  • Extremely lightweight yet strong.
  • Precision molded to ensure consistency in form and function.
  • Economical when compared with other materials.

What are the Materials?

  • Glass filled Polypropylene.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
  • Locking feature using safety clips to prevent disconnection during use.
  • Supplied 304 stainless steel handles, handle pins, pull rings, and safety clips.
  • All 4" size female couplers supplied with three handles to provide added stability.
  • EPDM gasket included.
Part Number Size
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
PPD050 1/2" 100 PSI 0.18 lbs
PPD075 3/4" 100 PSI 0.19 lbs
PPD100 1" 100 PSI 0.25 lbs
PPD125 1-1/4" 100 PSI 0.41 lbs
PPD150 1-1/2" 100 PSI 0.53 lbs
PPD200 2" 100 PSI 0.55 lbs
PPD300 3" 50 PSI 1.17 lbs
PPD400 4" 50 PSI 1.58 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
