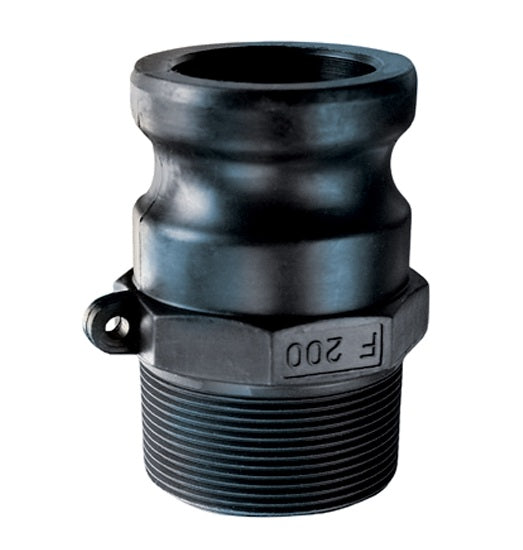

PPF100 by Kuriyama | PPF Series | Part F | Cam & Groove Adapter | 1" Adapter x 1" Male NPT | Polypropylene

Save $3.29

$5.52

$5.52 - $5.52

$5.52

$2.23

$2.23 - $2.23

$2.23

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | PPF Series | Part F | Adapter x Male NPT | Polypropylene

Kuriyama Camlock Couplings are intended for use in many industrial applications.

Cost-effective, high-performance alternative to metal fittings in industrial and agricultural markets.

Specifications for Variant SKU: PPF100 Kuriyama
Series:	PPF Series
Shape (Orientation):	Straight
Cam Type:	Type F
Ends Configuration:	1in Male Cam & Groove, 1in Male NPT
Material(s):	Polypropylene

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial and agricultural applications.
Polypropylene is a cost-effective, high-performance alternative to metal options. Despite lacking the strength of stainless steel or aluminum.
Offers excellent corrosion resistance and impressive durability.

What are the Features?

Polypropylene material is glass filled for added strength and durability.
Extremely lightweight yet strong.
Precision molded to ensure consistency in form and function.
Economical when compared with other materials.

What are the Materials?

Glass filled Polypropylene.
Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.

Part Number	Size (in)	PSI Rating at 70°F	Weight Each (lbs)
PPF050	1/2"	100 PSI	0.04 lbs
PPF075	3/4"	100 PSI	0.06 lbs
PPF100	1"	100 PSI	0.11 lbs
PPF125	1-1/4"	100 PSI	0.15 lbs
PPF150	1-1/2"	100 PSI	0.18 lbs
PPF200	2"	100 PSI	0.29 lbs
PPF300	3"	50 PSI	0.56 lbs
PPF400	4"	50 PSI	0.81 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
