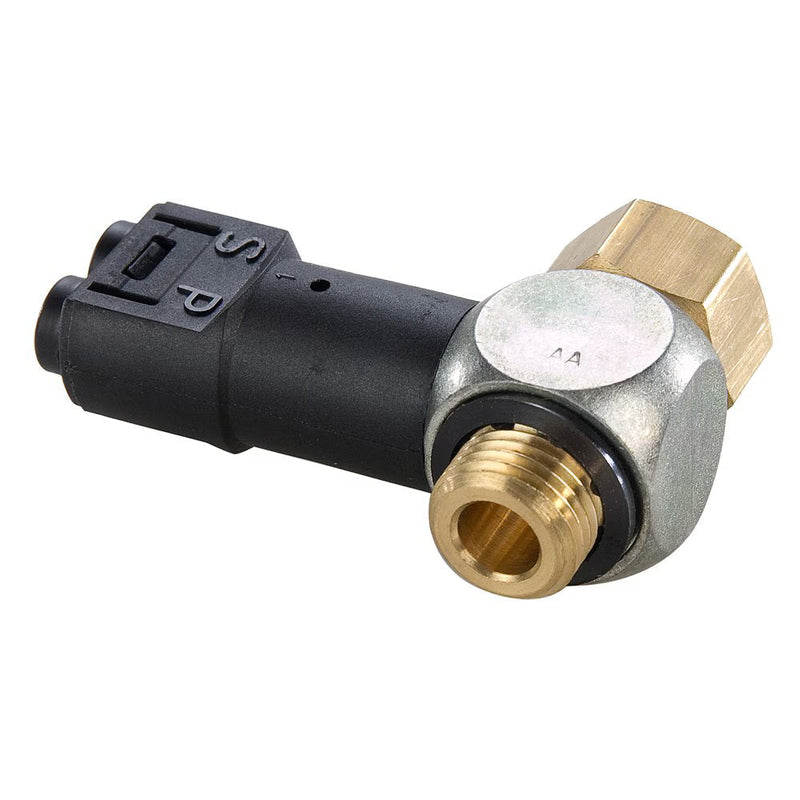

PSBJ731-0 by Parker | Pneumatic Threshold Sensor | 10-32" Male UNF Thread | 5/16" Hex | Straight | Bolt Material: Brass | Polymer

Save $15.84

$115.01

$115.01 - $115.01

$115.01

$99.17

$99.17 - $99.17

$99.17

by Parker Hannifin
Threshold Sensor Fittings:PSBJ731 Pneumatic Threshold Sensor - 5/32 Pilot

Specifications for Variant SKU: PSBJ731-0 Parker
Series:	PSBJ731 Series
Shape (Orientation):	Straight
Material(s):	Polymer, Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Valved

Product Features:	Polymer body Brass screw NBR seal
Markets:	Factory/Process Automation Packaging Petrochemical Pneumatics Semi-Conductor
Applications:	Robotics Packaging Textile Machine Tools Pneumatic Systems
Pressure Range:	45 to 115 PSI (3.1 to 7.9 bar)
Temperature Range:	+5° to +140° F (-15° to +60° C)
Breaking Pressure:	8.5 PSI (0.5 bar)
Response Time:	3 MS
Model PSPE Pressure Range:	45 to 115 PSI (3.1 to 7.9 bar)
Breaking Pressure:	8.5 PSI (0.5 bar)
Current Rating:	5A/250VAC – 5W/48VDC
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A Nylon Fluoropolymer


Part Number	NPT / UNF	Hex	H	L
PSBJ731-0	10-32"	5/16"	.62"	1.70"
PSBJ731-2	1/8"	9/16"	.90"	1.74"
PSBJ731-4	1/4"	5/8"	1.09"	1.81"
PSBJ731-6	3/8"	7/8"	1.13"	1.91"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
