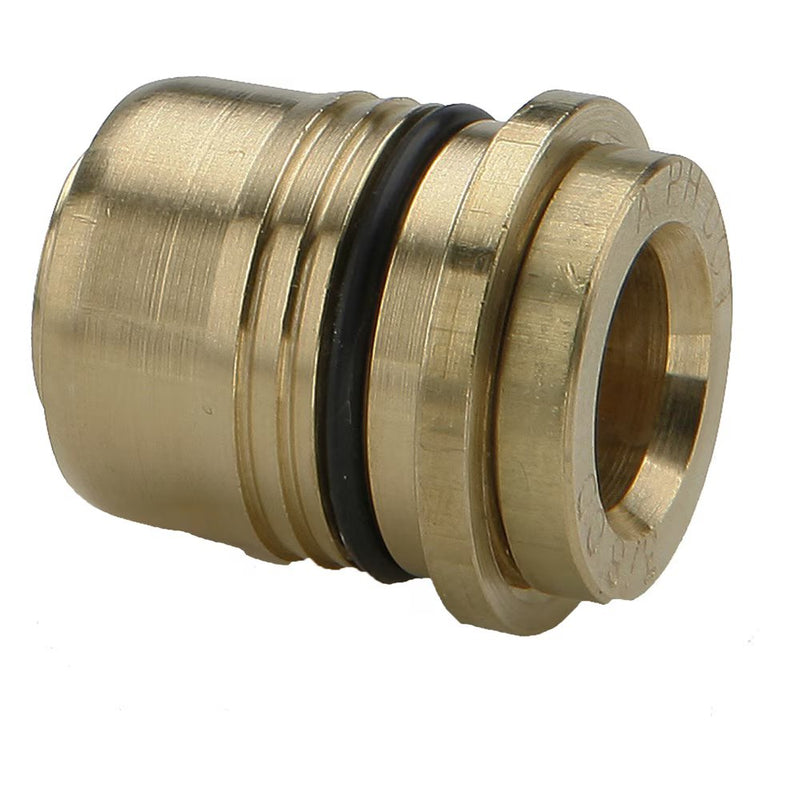

PTCCE-6-8 by Parker | SAE Encapsulated Cartridge | 3/8" Tube Size x 1/2" Tube Size | .88" Length | Straight | Brass

PTCCE-6-8 by Parker | SAE Encapsulated Cartridge | 3/8" Tube Size x 1/2" Tube Size | .88" Length | Straight | Brass

Save $1.08 Save $1.08
$13.21
$13.21 - $13.21
$13.21
$12.13
$12.13 - $12.13
$12.13

by Parker Hannifin
Cartridges:PTCCE SAE Encapsulated Cartridge
Specifications for Variant SKU: PTCCE-6-8 Parker
Series: PTCCE Series
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Life Science
Product Features:
  • Self-centering of the cartridge in the cavity
  • Push-in connection
  • Designed for automation assembly process
  • SAE & NSF cartridges available
Markets:
  • Industrial
  • Pneumatic
  • Filtration
  • Semi-Conductor
    • C
  • Life Science
  • Automation
  • Heavy Duty Truck
Applications:
  • Air
  • Water
  • Beverage Dispensing
  • Cab Controls
  • Packaging
  • Labeling
  • Vacuum
Specifications:
Seals Pressure Temperature
Carstick Nitrile Up to 290 PSI (20 bar) -4° to +175° F (-20° to +79.4° C)
PLM/PLS FKM Up to 435 PSI (30 bar) -13° to +302° F (-25° to +150° C)
LIQUIfit EPDM Up to 230 PSI (15.9 bar) 35° to +200° F (+1.7° to +93.3° C)
TrueSeal EPDM Up to 150 PSI (10.3 bar) -20° to +180° F (-28.9° to +82.2° C)
PTC Nitrile Up to 250 PSI (17.2 bar) -40° to +200° F (-40° to +93.3° C
Part Number Tube Size Cavity Size ±.002 L M OD Flow Diameter (D)
PTCCE-4 1/4" .504" .63" .43" .56" .13"
PTCCE-6 3/8" .650" .69" .48" .73" .22"
PTCCE-6-8 3/8" .775" .71" .50" .88" .22"
PTCCE-8 1/2" .775" .91" .69" .88" .34"
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
