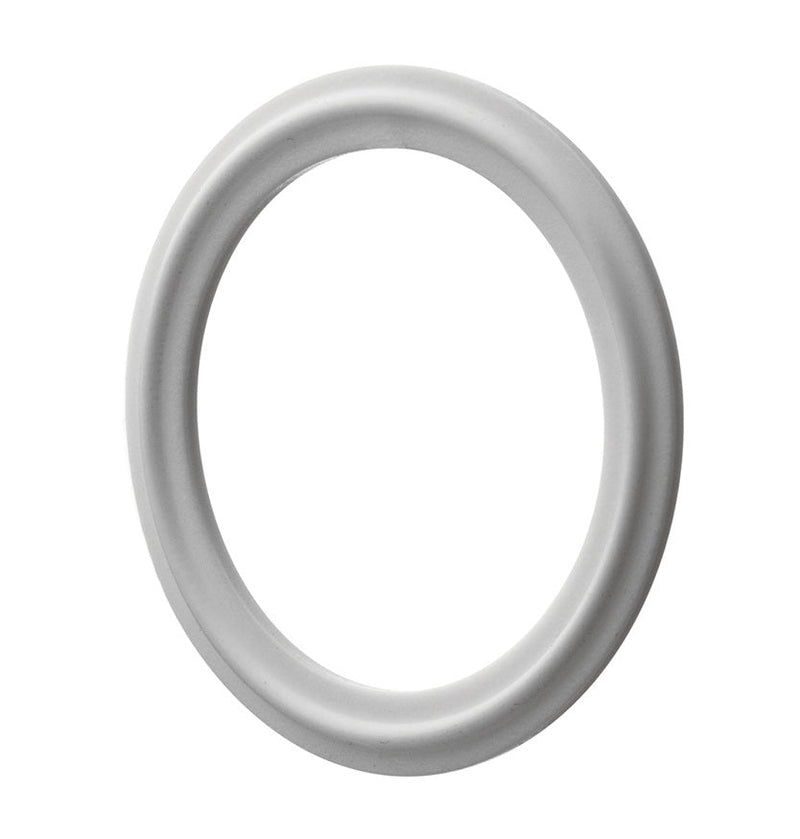

PTFE-40MPG100 by Kuriyama | PTFE-40MPG Series | Sanitary Tri-Clamp Gasket | 1" Size | White PTFE

PTFE-40MPG100 by Kuriyama | PTFE-40MPG Series | Sanitary Tri-Clamp Gasket | 1" Size | White PTFE

Save $2.41 Save $2.41
$4.08
$4.08 - $4.08
$4.08
$1.67
$1.67 - $1.67
$1.67

Kuriyama of America Inc.
Sanitary PTFE Tri-Clamp Gasket White

Specifications for Variant SKU: PTFE-40MPG100 Kuriyama

What are the Features?

  • USP Class VI standard.
  • Service Temperature Range: -40°F (-40°C) to +450°F (+232°C)
  • Color Code: None
  • PTFE (Teflon®) gaskets exhibit exceptional chemical resistance, and extremely high tolerances to heat and steam. However, they’re a plastic as opposed to an elastomer, and therefore not as compressible as other gasket materials, which can lead to difficulty in sealing if misaligned. They can experience cold flow, especially if clamps are misaligned or overtightened, resulting in a reduction in sealing pressure.
Part Number Size
(in)		 Weight Each
(lbs)
PTFE-40MPG100 1" 0.013 lbs
PTFE-40MPG150 1-1/2" 0.014 lbs
PTFE-40MPG200 2" 0.018 lbs
PTFE-40MPG300 3" 0.028 lbs
PTFE-40MPG400 4" 0.040 lbs
