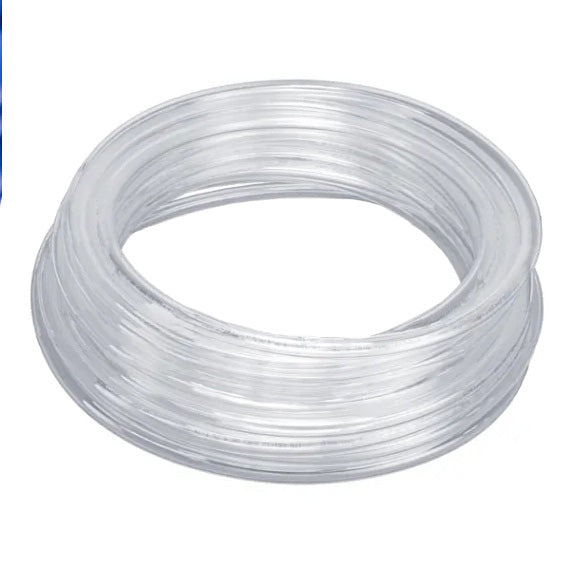

PU08320TC-100 by Dixon Valve | Polyurethane - 95 Durometer Tubing | 1/2" OD | 0.320" ID | 0.090" Wall Thickness | Clear | 100ft Length

Save $55.59

$344.71

$344.71 - $344.71

$344.71

$289.12

$289.12 - $289.12

$289.12

Dixon Valve
Polyurethane – 95 Durometer Tubing | Clear

Good for applications where space is tight.

Package Quantity: 100 FT

Specifications for Variant SKU: PU08320TC-100 Dixon
Hose Color(s):	Clear/Semi-Clear
Internal Diameter:	0.320in
Outer Diameter:	0.50in
Tubing Construction:	Polyurethane
Cover Construction:	Polyurethane

Plastic Fittings and Tubing

Dixon Valve | Nylon Tubing

1

What are the key specifications?

Tube

Polyurethane - 95 Durometer

Cover

Polyurethane - 95 Durometer

Reinforcement

None

Temperature Range

-40°F to 165°F (-40°C to 74°C)

Color

Clear

2

What are the main product features?

Good for applications where space is tight.
For applications where tubing will be exposed, black tubing is recommended.
High flexibility and a small bend radius.

3

Which sizes or configurations are available?

Part Number	OD	ID	Wall Thickness	Working Pressure PSI at 68°F (20°C)	Length
PU02001TC-100	1/8"	0.062"	0.031"	255 PSI	100ft
PU25005TC-100	5/32"	0.093"	0.031"	210 PSI	100ft
PU04160TC-100	1/4"	0.160"	0.045"	175 PSI	100ft
PU80050TC-100	5/16"	0.216"	0.049"	190 PSI	100ft
PU06004TC-100	3/8"	0.250"	0.066"	170 PSI	100ft
PU08320TC-100	1/2"	0.320"	0.090"	175 PSI	100ft

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
