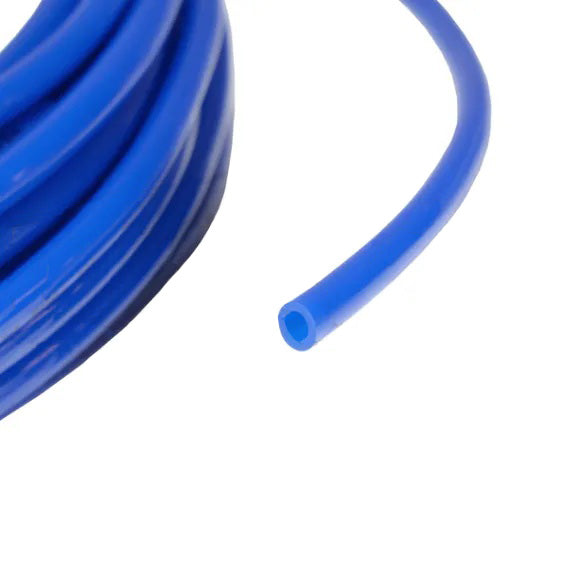

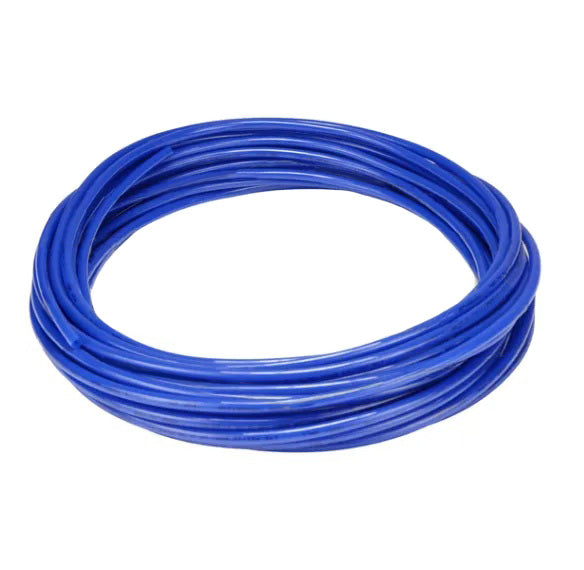

PU80050B-100 by Dixon Valve | Polyurethane - 95 Durometer Tubing | 5/16" OD | 0.216" ID | 0.049" Wall Thickness | Blue | 100ft Length

Save $33.71

$170.30

$170.30 - $170.30

$170.30

$136.59

$136.59 - $136.59

$136.59

Dixon Valve
Polyurethane – 95 Durometer Tubing | Blue

Good for applications where space is tight.

Package Quantity: 100 FT

Specifications for Variant SKU: PU80050B-100 Dixon
Hose Color(s):	Blue
Internal Diameter:	0.216in
Outer Diameter:	0.31in
Tubing Construction:	Polyurethane
Cover Construction:	Polyurethane

Plastic Fittings and Tubing

Dixon Valve | Nylon Tubing

1

What are the key specifications?

Tube

Polyurethane - 95 Durometer

Cover

Polyurethane - 95 Durometer

Reinforcement

None

Temperature Range

-40°F to 165°F (-40°C to 74°C)

Color

Blue

2

What are the main product features?

Good for applications where space is tight.
For applications where tubing will be exposed, black tubing is recommended.
High flexibility and a small bend radius.

3

Which sizes or configurations are available?

Part Number	OD	ID	Wall Thickness	Working Pressure PSI at 68°F (20°C)	Length
PU02001B-100	1/8"	0.062"	0.031"	255 PSI	100ft
PU25005B-100	5/32"	0.093"	0.031"	210 PSI	100ft
PU04160B-100	1/4"	0.160"	0.045"	175 PSI	100ft
PU80050B-100	5/16"	0.216"	0.049"	190 PSI	100ft
PU06004B-100	3/8"	0.250"	0.066"	170 PSI	100ft
PU08320B-100	1/2"	0.320"	0.090"	175 PSI	100ft

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
