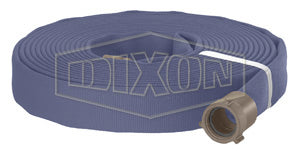

PW615B100RAF Dixon Double Jacket Potable Water Hose - Blue - Coupled - Female x Male NST(NH) Expansion Ring Couplings (Aluminum) - 1-1/2" Hose Size - 100ft Length

PW615B100RAF Dixon Double Jacket Potable Water Hose - Blue - Coupled - Female x Male NST(NH) Expansion Ring Couplings (Aluminum) - 1-1/2" Hose Size - 100ft Length

Save $73.68 Save $73.68
$663.11
$663.11 - $663.11
$663.11
$589.43
$589.43 - $589.43
$589.43

Dixon Fire Fittings
Fire Hose - Double Jacket Potable Water Hose - Blue - Coupled

Liner is NSF approved for potable water, fittings are not, except for temporary / emergency drinking needs only.
Specifications for Variant SKU: PW615B100RAF Dixon
Series: Fire Hose
Hose Color(s): Blue
Internal Diameter: 1.50in
Tubing Construction: Thermoplastic Elastomer
Cover Construction: Polyester Textile Braid
Ends Configuration: 1-1/2in Male NST, 1-1/2in Female NST
Applicable Specs & Approvals: Applicable NSF Requirements
Features:
  • Outer construction: double jacket, all polyester.
  • Tube construction: thermoplastic.
  • Proof pressure: 600 PSI at 70°F (21°C).
  • Service test pressure: 300 PSI at 70°F (21°C).
  • Working pressure: 270 PSI at 70°F (21°C).
Brass
Part Number		 Aluminum
Part Number		 Size Thread Length Brass
Part #
Weight
(Lbs.)		 Aluminum
Part #
Weight
(Lbs.)
Coupled with Female and Male, Brass or Sluminum Rocker Lug, Expansion Ring Couplings
PW615B50RBS PW615B50RAS 1-1/2" Female x Male NPSH 50 ft 15.2000 13.3490
PW615B100RBS PW615B100RAS 1-1/2" Female x Male NPSH 100 ft 34.5200 27.4400
PW615B50RBF PW615B50RAF 1-1/2" Female x Male NST(NH) 50 ft 29.5000 14.5000
PW615B100RBF PW615B100RAF 1-1/2" Female x Male NST(NH) 100 ft 29.0000 25.6000
PW625B50RBS PW625B50RAS 2-1/2" Female x Male NPSH 50 ft 28.5000 25.1780
PW625B100RBS PW625B100RAS 2-1/2" Female x Male NPSH 100 ft 36.0000 51.0000
PW625B50RBF PW625B50RAF 2-1/2" Female x Male NST(NH) 50 ft 28.5000 25.6000
PW625B100RBF PW625B100RAF 2-1/2" Female x Male NST(NH) 100 ft 36.0000 48.0000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
