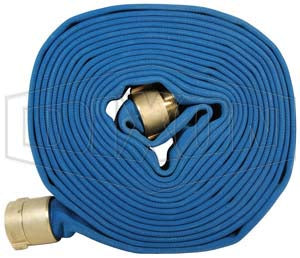

PW615B100RBS Dixon Double Jacket Potable Water Hose - Blue - Coupled - Female x Male NPSH Expansion Ring Couplings (Brass) - 1-1/2" Hose Size - 100ft Length

Name: PW615B100RBS Dixon Double Jacket Potable Water Hose - Blue - Coupled - Female x Male NPSH Expansion Ring Couplings (Brass) - 1-1/2" Hose Size - 100ft Length
Brand: Dixon
SKU: PW615B100RBS Dixon
Price: 658.09 USD
Availability: InStock

Save $82.26

$740.35

$740.35 - $740.35

$740.35

$658.09

$658.09 - $658.09

$658.09

Dixon Fire Fittings
Fire Hose - Double Jacket Potable Water Hose - Blue - Coupled

Liner is NSF approved for potable water, fittings are not, except for temporary / emergency drinking needs only.

Quantity

Specifications for Variant SKU: PW615B100RBS Dixon
Series:	Fire Hose
Hose Color(s):	Blue
Internal Diameter:	1.50in
Tubing Construction:	Thermoplastic Elastomer
Cover Construction:	Polyester Textile Braid
Ends Configuration:	1-1/2in Male NPSH, 1-1/2in Female NPSH
Applicable Specs & Approvals:	Applicable NSF Requirements

Features:
Outer construction: double jacket, all polyester. Tube construction: thermoplastic. Proof pressure: 600 PSI at 70°F (21°C). Service test pressure: 300 PSI at 70°F (21°C). Working pressure: 270 PSI at 70°F (21°C).

Brass Part Number	Aluminum Part Number	Size	Thread	Length	Brass Part # Weight (Lbs.)	Aluminum Part # Weight (Lbs.)
Coupled with Female and Male, Brass or Sluminum Rocker Lug, Expansion Ring Couplings
PW615B50RBS	PW615B50RAS	1-1/2"	Female x Male NPSH	50 ft	15.2000	13.3490
PW615B100RBS	PW615B100RAS	1-1/2"	Female x Male NPSH	100 ft	34.5200	27.4400

PW615B50RBF	PW615B50RAF	1-1/2"	Female x Male NST(NH)	50 ft	29.5000	14.5000
PW615B100RBF	PW615B100RAF	1-1/2"	Female x Male NST(NH)	100 ft	29.0000	25.6000

PW625B50RBS	PW625B50RAS	2-1/2"	Female x Male NPSH	50 ft	28.5000	25.1780
PW625B100RBS	PW625B100RAS	2-1/2"	Female x Male NPSH	100 ft	36.0000	51.0000

PW625B50RBF	PW625B50RAF	2-1/2"	Female x Male NST(NH)	50 ft	28.5000	25.6000
PW625B100RBF	PW625B100RAF	2-1/2"	Female x Male NST(NH)	100 ft	36.0000	48.0000

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
