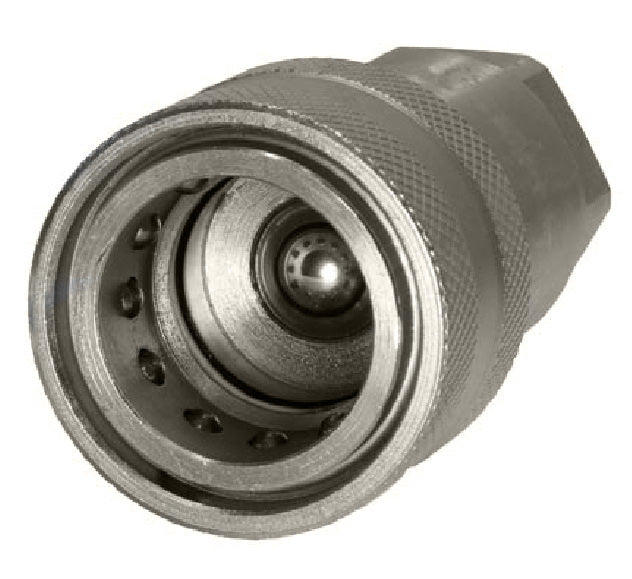

QC-AGBL12-F-08S by Couplamatic | Hydraulic Quick Coupler | AGBL Series | 1/2" Body Size x 3/4-16 Female SAE | Socket | Zinc Plated

QC-AGBL12-F-08S by Couplamatic | Hydraulic Quick Coupler | AGBL Series | 1/2" Body Size x 3/4-16 Female SAE | Socket | Zinc Plated

Save $12.11 Save $12.11
$30.28
$30.28 - $30.28
$30.28
$18.17
$18.17 - $18.17
$18.17

Couplamatic Inc
Hydraulic Quick Couplers - AGBL Series Hydraulic Quick Couplers
Specifications for Variant SKU: QC-AGBL12-F-08S Couplamatic
Series: AGBL Series
Shape (Orientation): Straight
Features:
  • AGBL Series Couplers are made to the ISO 5675 Standard (1/2" only).
  • High quality ball style coupler with nitrile seals.
  • Zinc Plating
Temperature:
  • -40°F (-40°C) to 223°F (106°C).
Applications:
  • Industrial
  • Agriculture
  • Mobile
Part Number Body
Size		 Body
Size
(ISO)		 Coupler
Gender		 Thread
Size		 Working
Pressure		 Coupled
Burst		 Female
Burst		 Male
Burst		 "A" Length "B" Length "C" Length
QC-AGBL12-F-08N 1/2" 12 Female 1/2-14 NPT 3987 PSI 18125 PSI 17400 PSI 17400 PSI 3.5" 2.6" -
QC-AGBL12-M-08N 1/2" 12 Male 1/2-14 NPTF 3987 PSI 18125 PSI 17400 PSI 17400 PSI 3.5" - 1.7"

QC-AGBL12-F-08S 1/2" 12 Female 3/4-16 SAE 3987 PSI 18125 PSI 17400 PSI 17400 PSI 3.5" 2.6" -
QC-AGBL12-M-08S 1/2" 12 Male 3/4-16 SAE 3987 PSI 18125 PSI 17400 PSI 17400 PSI 3.5" - 1.7"
